● Watt: 960W
● Lumens: 148,800
● Light Source: Lumileds 5050
● Input Volt: 100-277VAC
● IP Rating: IP65 - IK08
● Size: 650*597*132mm
● Lamp Weight: 18kg
● CCT (Color Temp): 3000,4000,5000,5700k
● 5 years warranty
● Beam Angle: 10/ 20/ 40/ 60/ 90/ 140*100/ 135*60(P50)/ 30*70
| Model | LSHM-B960W-LV(XXK) | |
| Watt | 960W | |
| Lumen | 148,800 | |
| Efficiency | 155Lm/W±3% | |
| Driver | Meanwell Driver 4*ELG-240-48A | |
| Input Volt | 100-277VAC | |
| Chip Brand | Lumileds 5050 | |
| Color Temp | 3000K / 4000K / 5000K / 5700K | |
| Weight | 18kg | |
| Size | 650*597*132mm | |
| Beam Angle | 10 /20/ 40 / 60 / 90/ 140*100 degree | |
| Modules | Module rotatable up & down 15 degree | |
| Dimming | Dimmable/ Non-dimmable | |
| Wind rating | 51.0-56.0m/s | |
| Lifespan | >50,000 Hours | |
| IP Rating | IP65 & IK08 | |
| Certficates | ENEC, REACH, ETL, cETL, DLC,CB,Salt Spray test | |

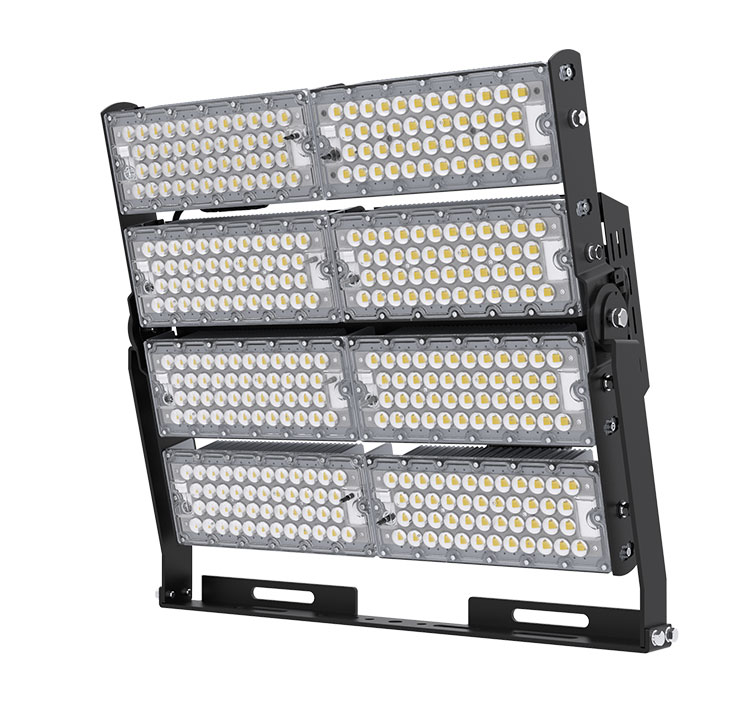

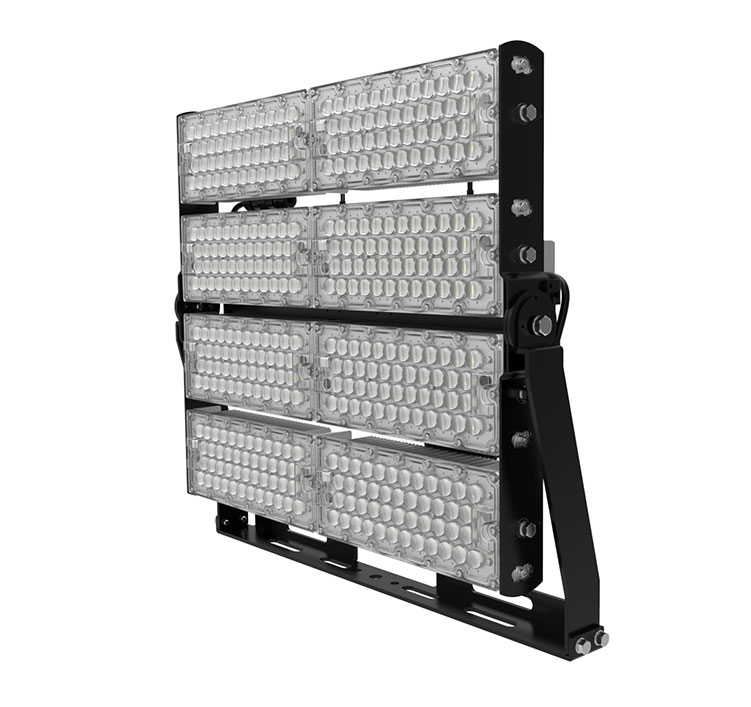

Slim LED High Mast Flood Light 960W
Slim LED High Mast Flood Light is a perfect Outdoor lighting solution for area, street, stadium.
960W
Lumileds 5050
155Lm/W
3000K-6000K
ETL DLC ENEC TUV CE CB SAA RoHS
LM79 LM80 TM21 IK10 Salt Spray test approved
High quility LED Brand
Uses Lumileds 5050, High Efficiency 160Lm/W.
Lumileds 5050
Fin heat dissipation design
Fin heat dissipation design, better heat dissipation capacity, avoid heat accumulation of lamps and prolong the service life of lamps.
Fin heat dissipation
Light weight
1.Weight of folding fin heat sink is 50% ligher than die costing, extrution etc.
2.1070 aluminum, thickness 0.5mm. structure on heat dissipation, the heat dissipation area is larger, and the heat dissipation effect is better, it's with Lighter weight, which is 1/3 of weight of die-casting, proximate matter and cold forging.
Our led high mast uses aluminum fins for heat dissipation, which has good heat dissipation performance and light weight, and it is 50% lighter than the weight of the die-cast high mast. There is a big advantage in installing our led high pole lights for aerial work. Lightweight design provides easy refurbishment of existing HID installations as well as quick installation.
Light weight
IP65 Waterproof
The 50,000-hour service life, IP65 waterproof rating and salt spray-resistant design ensure that the lamps can operate maintenance-free for many years.
IP65 Waterproof
Withstand wind
Install our Slim LED high mast lights Can withstand hurricanes of 51.0-56.0m/s.
Withstand wind 51.0-56.0m/s
Round installation plate
The round installation plate allows the luminaire to rotate freely 270° horizontally.
Round installation plate
Module Rotatable
The angle of the module can be adjusted by ±15 degree, and the module has a visual scale, which is easier to adjust.
Module Rotatable
Other Watt
Slim LED High Mast Light is available in wattage from 100W to 1440W, which is the best choice to replace the existing MH/HID street lights of 200W-3000W.
Beam Angle
The beam angle can be selected from 10/ 20/ 40/ 60/ 90/ 140*100 degree/ 135*60(P50). Professional light distribution angle can better achieve uniform and efficient lighting effect.
10
20
40
60
90
140*100 degree
135*60(P50)
Application

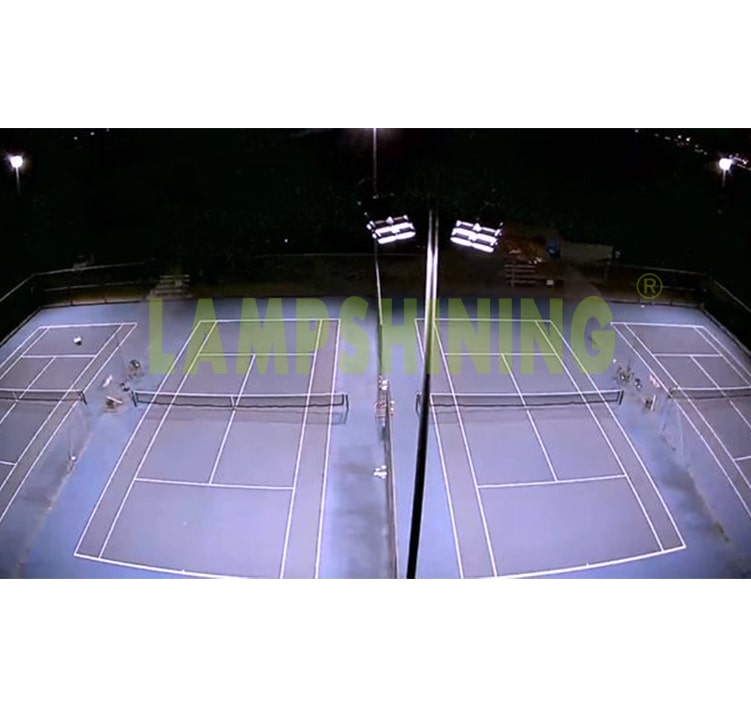

Can illuminate intersections, squares, docks, ships, ports, construction sites, cranes,Tennis courts, basketball courts, soccer fields, etc.
Accessories
| 347-480VAC Sosen driver | |
| 1-10V Dimmable | |
| 10KV or 20KV SPD | |
| Hot-dip galvanizing bracket | |
| Slip fitter |  |
| Round installation plate |  |
| Anti-glared visor |  |
| Laser pointer |  |
Accessories
1.Anti-glare accessories can avoid the effects of glare when the brightness of the light reaches a relatively large value.
2.Round installation plate enables the luminaire to rotate horizontally.
Packing Method Marking
75*69*23cm 1pc/ctn
GW: 20Kg
finished lamp packaging diagram
