● Watt: 500W
● Lumens: 80,000/ 90,000
● Light Source: Lumiled 2835
● Input Volt: 100-277VAC
● CCT (Color Temp): 3000-6500K
● IP Rating: IP65 - IK10
● Surge protection: 6Kv
● Beam Angle: 40/ 60/ 90/ 120 /40*100 degree
● 5 years warranty
● ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10
| Model | LSLHBL-500W | |
| Watt | 500W | |
| Lumen | 80,000 | |
| Efficiency | 160Lm/W±3% | |
| Chip Brand | Lumiled 2835 | |
| Input Volt | 100-277VAC | |
| CCT | 3000K-6000K | |
| Driver Power | Moso 2*MNC-240B240 | Meanwell 2*XLG-240-48A |
| Equivalent | 1000W-1200W metal halide/ HID High Bay lamp Equivalent | |
| Beam angle | 60/ 90/ 120/ 30*70/ 80*155/ 90*140 degree | |
| Power Factor | >0.95 | |
| Cap Type | Base Options:US,Europe,UK,Australia plug | |
| Installation Method | Chain hanging style and Ceiling/ Wall Mount(rotatable) | |
| CRI | >70 | |
| Warranty | 5 years warranty | |
| Rated Lifespan | 50000 hours | |
| Certified | ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 | |
| Model | LSLHBL-500W | |
| Watt | 500W | |
| Lumen | 90,000 | |
| Efficiency | 180Lm/W±3% | |
| Chip Brand | Lumiled 2835 | |
| Input Volt | 100-277VAC | |
| CCT | 3000K-6000K | |
| Driver Power | Moso 2*MNC-240B240 | Meanwell 2*XLG-240-48A |
| Equivalent | 1000W-1200W metal halide/ HID High Bay lamp Equivalent | |
| Beam angle | 60/ 90/ 120/ 30*70/ 80*155/ 90*140 degree | |
| Power Factor | >0.95 | |
| Cap Type | Base Options:US,Europe,UK,Australia plug | |
| Installation Method | Chain hanging style and Ceiling/ Wall Mount(rotatable) | |
| CRI | >70 | |
| Warranty | 5 years warranty | |
| Rated Lifespan | 50000 hours | |
| Certified | ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 | |

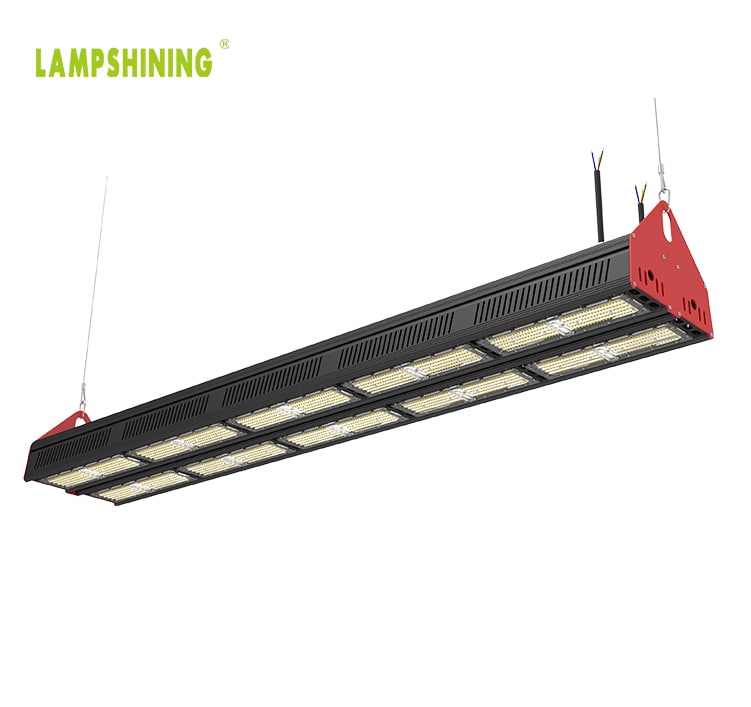

500W Linear LED High Bay Light
Linear LED High Bay Light is a perfect indoor lighting solution for warehouse, workshop and industrial lighting.
500W
160-180Lm/W
3000K-6000K

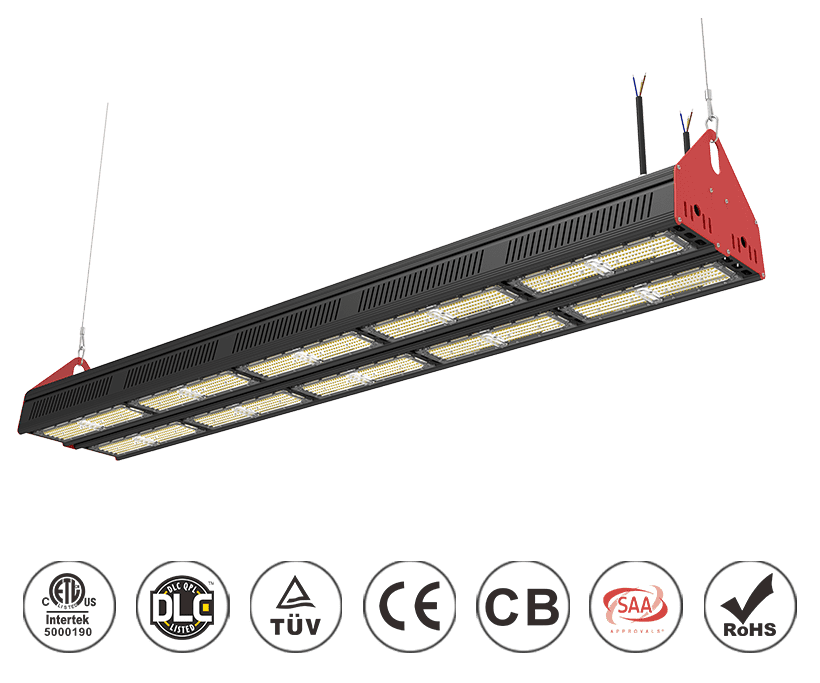

ETL DLC TUV CE CB SAA RoHS
LM79 LM80 TM21 IK10
High Quality Brand
Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 160-180Lm/W!
Lumileds 2835

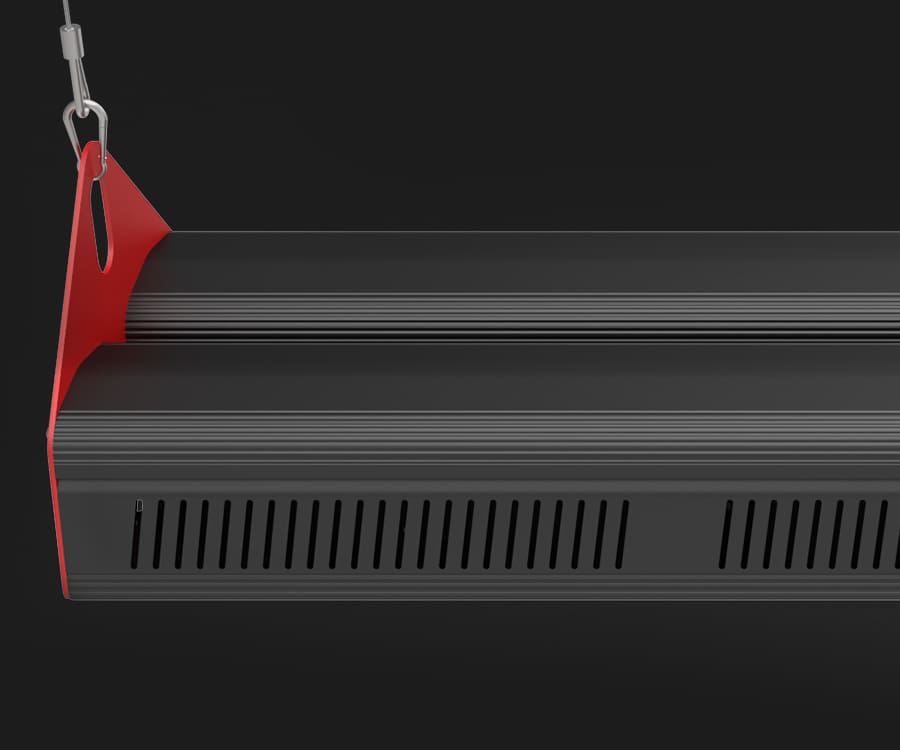

Heat Dissipation Design
Adopt 6063 aluminum integrated heat dissipation design, larger heat dissipation area and better heat dissipation effect.
6063 aluminum integrated heat dissipation
IP65 Waterproof & IK10
Use high-quality aluminium case, waterproof grade IP65 and IK10 rating of anticollision.
IP65 Waterproof
IK10
Motion Sensor(Optional)
Linear LED High Bay Light can optionally be fitted with motion sensors for smart lighting.
Motion Sensor
Beam Anlge
Linear LED High Bay Light can choose different lens and beam angle.Allows different areas to have better lighting.
Flexible Lighting
Other Watt
Linear LED High Bay Light is available in wattage from 50W to 500W, which is the best choice to replace the existing MH/HID street lights of 100W-1200W.
Beam Angle
The beam angle can be selected from 40/60/90/120/40*100 degree/P50. Professional light distribution angle can better achieve uniform and efficient lighting effect.
40 degree
60 degree
90 degree
120 degree
40*100 degree
P50
Application
Used in factories, warehouses, workshops, stadiums, parking lots, logistics centers, large warehouses, supermarket lighting, underground garages, exhibition centers, stadium lighting, high-speed toll stations, etc.
| Watt | Size |
| 500W | 1pc/ 1481*230*173mm |
