● Watt: 30W/50W/100W/150W/200W/240W/300W/400W/500W/600W
● Light Source: Lumileds 2835 (170Lm)
● Light Source: Lumileds 5050 (190Lm)
● Input Volt: 100-277VAC
● IP Rating: IP66 - IK08
● CCT (Color Temp): 3000-6000K
● Efficiency:170-190Lm/w
● Surge protection:6KV
● Beam Angle: 25°/45°/60°/90 °120°/90*120° T2/T3/T5
● 5 years warranty
Model | LSSFL-30W | LSSFL-50W | LSSFL-100W | LSSFL-150W | LSSFL-200W | LSSFL-240W | LSSFL-300W | LSSFL-400W | LSSFL-500W | LSSFL-600W |
| Watt | 30W | 50W | 100W | 150W | 200W | 240W | 300W | 400W | 500W | 600W |
| Lumen | 51,00Lm | 8,500Lm | 17,000Lm | 25,500Lm | 34,000Lm | 40,800Lm | 51,000Lm | 68,000Lm | 85,000Lm | 102,000Lm |
| Efficiency | 160-170Lm/W±3% | |||||||||
| Input Volt | 100-277VAC | |||||||||
| Chip Brand | Lumileds 2835 | |||||||||
| Power Supply | Kehua Driver | Sosen / Lifud / Moso Driver | ||||||||
| Surge Protection | 6KV | |||||||||
| CCT | 3000-6000K | |||||||||
| IP & IK Rating | IP66 & IK08 | |||||||||
| Beam Angle | 25°/45°/60°/90°/120°/90*120° Type2 / Type3 / Type5 | |||||||||
| Certifications | ETL, DLC, TUV, CE, CB, IECEE, SAA, RoHS, LM79, LM80, TM21, Salt spray test approved | |||||||||
Remark:120 degree is witout optic which lumen efficiency is 170lm/w±3%,the rest beam angles with optic which lumen efficiency is 160lm/w±3%
Wattage adjustable can be setted in 4 shifts: 100% 80% 60% 40% (for example:200W can be setted 200W 160W 120W and 80W)
CCT adjustable can be 3000K/4000K/5000K or 4000K/5000K/6000K,only 120°(without lense) is available with CCT adjustable
Model | LSSFL-30W | LSSFL-50W | LSSFL-100W | LSSFL-150W | LSSFL-200W | LSSFL-240W | LSSFL-300W | LSSFL-400W | LSSFL-500W | LSSFL-600W |
| Watt | 30W | 50W | 100W | 150W | 200W | 240W | 300W | 400W | 500W | 600W |
| Lumen | 57,00Lm | 9,500Lm | 19,000Lm | 28,500Lm | 38,000Lm | 45,600Lm | 57,000Lm | 76,000Lm | 95,000Lm | 114,000Lm |
| Efficiency | 180-190Lm/W±3% | |||||||||
| Input Volt | 100-277VAC | |||||||||
| Chip Brand | Lumileds 5050 | |||||||||
| Power Supply | Kehua Driver | Sosen / Lifud / Moso Driver | ||||||||
| Surge Protection | 6KV | |||||||||
| CCT | 3000-6000K | |||||||||
| IP & IK Rating | IP66 & IK08 | |||||||||
| Beam Angle | 25°/45°/60°/90°/120°/90*120° Type2 / Type3 / Type5 | |||||||||
| Certifications | ETL, DLC, TUV, CE, CB, IECEE, SAA, RoHS, LM79, LM80, TM21, Salt spray test approved | |||||||||
Remark:120 degree is witout optic which lumen efficiency is 170lm/w±3%,the rest beam angles with optic which lumen efficiency is 160lm/w±3%
Wattage adjustable can be setted in 4 shifts: 100% 80% 60% 40% (for example:200W can be setted 200W 160W 120W and 80W)
CCT adjustable can be 3000K/4000K/5000K or 4000K/5000K/6000K,only 120°(without lense) is available with CCT adjustable

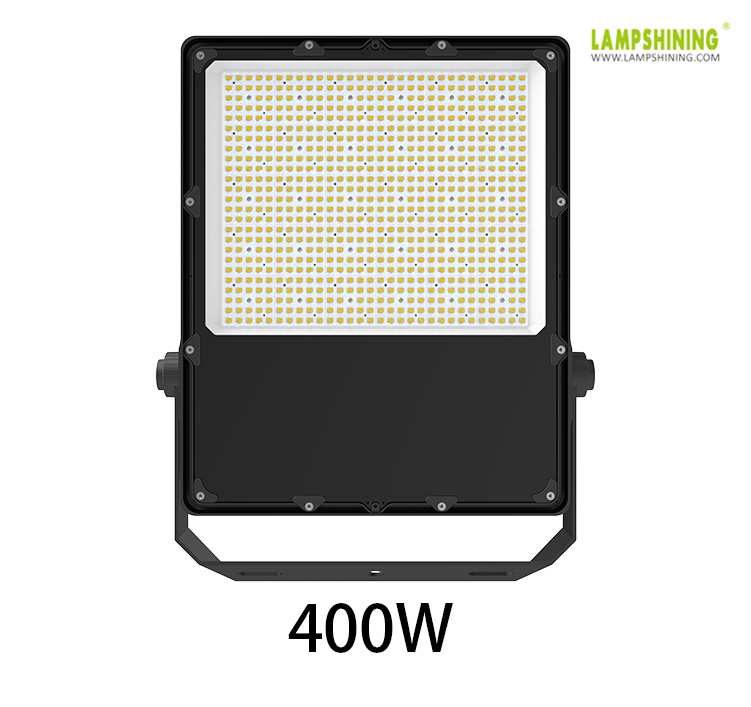

EKO LED Flood Lights 30W-600W
EKO Series is a lightweight universal floodlight, and it is equipped with 9 mainstream light distribution angles, which can meet the use requirements of 95% floodlight places, such as indoor and outdoor small and medium-sized courts and playgrounds, outdoor parking lots, architectural lighting, landscape lighting, etc. can provide 500-1000 hours of salt spray resistance and surface corrosion resistance, especially suitable for some coastal warehouses and floodlight application places in coastal areas.
30W
50W
100W
150W
200W
240W
300W
400W
500W
600W
ADC12 Die-Cast Aluminum
EKO LED Flood light 30W-600W is a floodlight made by die-cast aluminum, which equivalents to the conventional
HID floodlight. Luminaire back side has cooling fins to enhance the heat dissipation, and surface coated by
outdoor powder coating with corrosion-proof, this is a reliable low high power floodlight for outdoor lighting
of architectural, landscape, playground, warehouse, etc.U type bracket and pole mounting bracket make it
installation quick and easy. Definitely a classic floodlight,EKO is an impeccable choice to expand the
industrial lighting business.
One-piece die-cast anti-slip fixings
Durable and never loosens
Every 15° dial for easy angle angles
Beam angle
EKO Series is a lightweight universal floodlight, and it is equipped with 9 mainstream light distribution angles, which can meet the use requirements of 95% floodlight places.
25°
45°
60°
90°
120°
90*120°
Type2
Type3
Type5
PC optical lens + tempered glass
which are extremely cost-effective. It uses a small lens splicing scheme, lens replacement is convenient, customers can make appropriate choices according to their needs.
Wattage & CCT Adjustable
Wattage Adjustable:
can be setted in 4 shifts:100% 80% 60% 40% (for example:200W can be setted 200W 160W 120W and 80W)
CCT Adjustable:
can be 3000K/4000K/5000K or 4000K/5000K/6000K
Used in outdoor & indoor
EKO is a cost-effective, lightweight, ultra-thin flood lights.Light efficiency up to 190Lm/W, standards 170Lm/W.
sports venues
swimming pools
industrial sites
logistics parks
car parks
outdoor billboards
road intersections
architectural lighting
