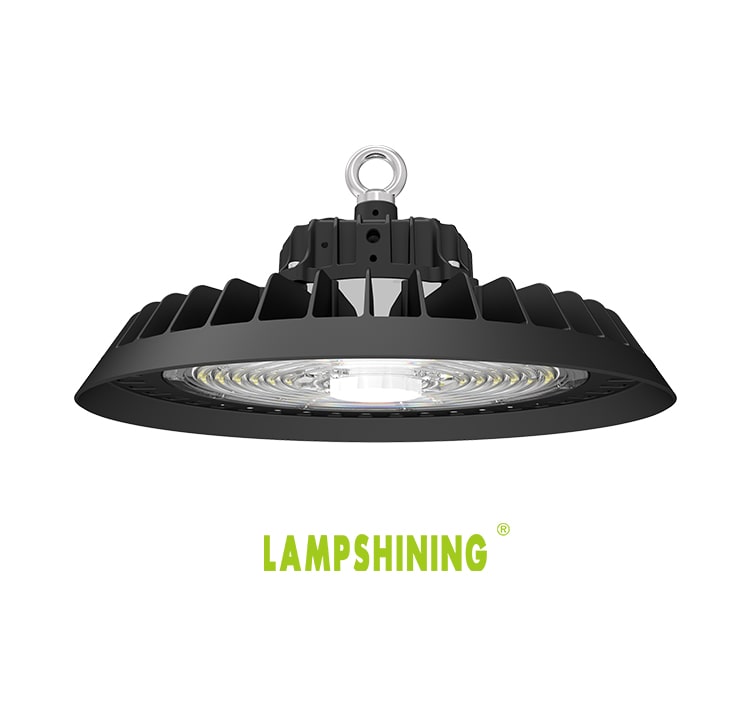

Intergrated Sensor 150W UFO LED High Bay Light 30000lm, Industrial Factory warehouse,commercial Exhibition, Shop Ceiling Lighting

●   Wattage: 150W

●   Lumens: 30,000

●   Light Source: Osram 2835

●   Input Volts: 100-277VAC

●   IP Rating: IP65 - IK10

●   CCT (Color Temp): 3000, 4000, 5000, 6000K

●   Mounting Height: 6-15meter

●   Size: 340*181mm

●   Beam Angle: 60/ 90/ 120 degree

●   5 years warranty

Inquire Now Next Product

Intergrated Sensor 150W UFO LED High Bay Light 30000lm, Industrial Factory warehouse,commercial Exhibition, Shop Ceiling Lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
ModelLSUFO-150WXY-GS(XXK)
Watt150W
Lumen24,000
Efficiency160Lm/W±3%
Chip BrandOsram 2835
Input Volt100-277Vac
Driver

Moso Driver G6‐160M260A12H

Color Temp3000K-6000K
Size340*181mm
Beam Angle60/ 90/ 120 degree
CertificatesETL cETL DLC Premium TUV CB SAA LM79 LM80
ModelLSUFO-150WXY-GS(XXK)
Watt150W
Lumen30,000
Efficiency200Lm/W±3%
Chip BrandOsram 2835
Input Volt100-277Vac
Driver

Moso Driver G6‐160M260A12H

Color Temp4000K, 5000K
Size340*181mm
Beam Angle60/ 90/ 120 degree
CertificatesETL cETL DLC Premium TUV CB SAA LM79 LM80

150W Intergrated UFO LED High Bay Light

150W Intergrated UFO LED High Bay Light

Intergrated UFO LED High Bay Light is a perfect indoor lighting solution for warehouse, workshop and industrial lighting.

150W

160-200Lm/W

3000K-6000K

ETL DLC TUV CE CB SAA

LM79 LM80

High Quality Brand

High Quality Brand

Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 160-200Lm/W!

Osram 2835

Die-casting Aluminum Radiator

Die-casting Aluminum Radiator

ADC12 aluminum alloy integrated die-casting heat dissipation design, larger heat dissipation area and better heat dissipation effect.

Die-casting Aluminum Radiator

IP65 Waterproof & IK10

IP65 Waterproof & IK10

Use high-quality aluminium case, Housing is made of Die Casting Aluminum ADC12 elaborate processing, good heat radiation effect, waterproof grade IP65 and IK10 rating of anticollision.

IP65

IK10

Motion Sensor(Optional)

Motion Sensor(Optional)

1.Unscrew the panel clockwise(Standard configuration)

2.Screw on the sensor counterclockwise(Optional)


Lamp comes with short cap,sensor is plug and play Motion sensor need to be ordered seperately,which is easy for stock.

Motion Sensor

Plug and Play

Motion Sensor

Motion Sensor

Motion sensor can intelligently identify the scene, thereby increasing or reducing the emitted light, which reduces the energy consumption of the lamp and has a longer service life.

1.Light automatically on when ambient brightness is lower than preset lux level;

2.With insufficient ambient brightness, light dims to 100% when motion detected;

3.Light dims to standby level if no motion detected after holdtime;

4.Light off when ambient lux level is higher than preset lux amount;

Motion Sensor

Other Watt

Intergrated UFO LED High Bay Light is available in wattage from 100W to 200W, which is the best choice to replace the existing MH/HID street lights of 200W-500W.

Beam Anlge

Beam Anlge

The beam angle can be selected from 60/ 90/ 120 degree. Professional light distribution angle can better achieve uniform and efficient lighting effect.

60 degree

90 degree

120 degree

Application

Used in factories, warehouses, workshops, stadiums, parking lots, logistics centers, large warehouses, super City lighting, underground garage, exhibition center, gymnasium lighting, high-speed toll station and other regional lighting.

Accessories

Yoke BracketYoke Bracket
2 Hooks+1 Cord(1M)2 Hooks+1 Cord(1M)
Remote controlRemote control
Twist Lock motion sensorTwist Lock motion sensor



WattSize
150W1pc/ ∮340*181mm
