● Watt: 240W
● Lumens: 36,000
● Light Source: Osram 2835
● IP Rating: IP65
● Input Volt: 100-277VAC
● Size: 420*420*52mm
● CCT (Color Temp): 3000-6000K
● 5 years warranty
● Heavy-gauge, die-cast aluminum housing
● Up to 20 year maintenance free operation
● Instant-On fl icker-free Cold Start and Hot Re-Start.
| Model | LSCP-240W | |
| Watt | 240W | |
| Lumen | 36,000 | |
| Efficiency | 150Lm/W±3% | |
| Light Source | Osram 2835 | |
| Dimension | 420*420*52mm | |
| Equivalent | 500W metal halide / HID lamp Equivalent | |
| CCT | 3000-6000K | |
| Input Voltage | 100-277VAC | |
| Power Factor | >0.95 | |
| Installation Method | Ceiling/ Boom Installation | |
| Construction | Heavy-gauge, die-cast aluminum housing | |
| Beam Angle | 120degree | |
| IP Rating | IP65 | |
| CRI | >70 | |
| Working Tempe / Humidity | -45 to + 50 Deg C / @Ta=25 Deg C | |
| Warranty | 5 year Warranty | |
| Rated Lifespan | 50,000+ hours | |
| Certified | ETL DLC CE CB RoHS LM80 | |

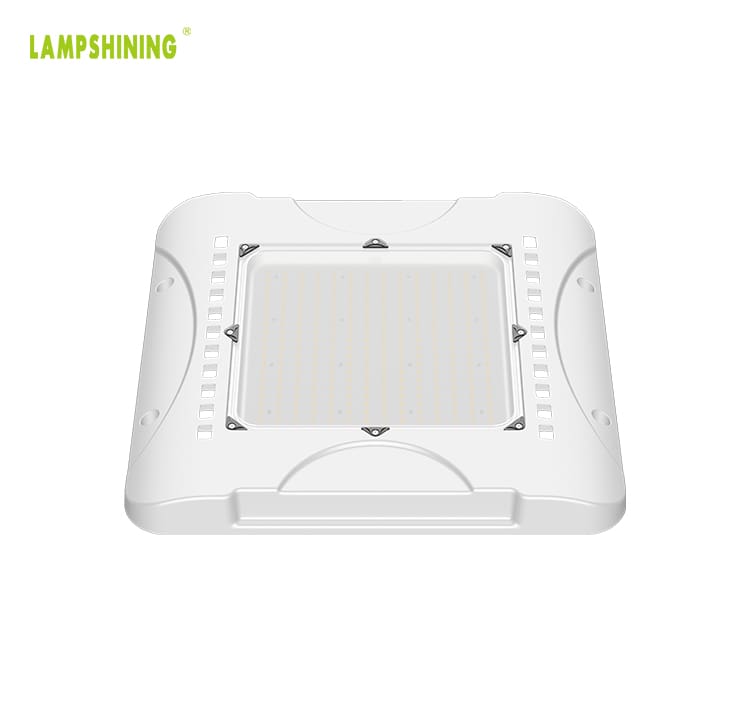

240W LED Canopy Light
240W LED Canopy Lights is a perfect Outdoo lighting solution for gas station, supermarket, market and logistics center.
240W
150Lm/W
3000K-6000K
ENEC DLC CE CB RoHS
LM80
High brightness
Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 150Lm/W!
Using professional anti-glare glass: low glare value, 120 degree angle;
Osram 2835
Low Glare
Aluminum Alloy Heat Dissipation
ADC12 aluminum alloy integrated die-casting heat dissipation design, better heat dissipation effect;
Ultra-thin design of the radiator, the overall lighting and performance are designed in accordance with North American standards, beautiful in appearance and light in weight;
ADC12 Aluminum Alloy Heat Dissipation
Waterproof IP65
IP65 waterproof rating, suitable for different environments;
Waterproof IP65
Installation method
You can choose 2 installation methods, boom type and ceiling type installation.
Boom Installation
Ceiling Installation
Other Watt
LED Canopy Light is available in wattage from 50W to 240W, which is the best choice to replace the existing MH/HID street lights of 100W-500W.
Beam Angle
The beam angle can be selected from 120 degree. Professional light distribution angle can better achieve uniform and efficient lighting effect.
120 degree
Application
Suitable for factories, workshops, warehouses, gas stations, supermarkets, markets, logistics centers, gymnasiums;
| Watt | Size |
| 240W | 1pc/ 540*540*67mm |
