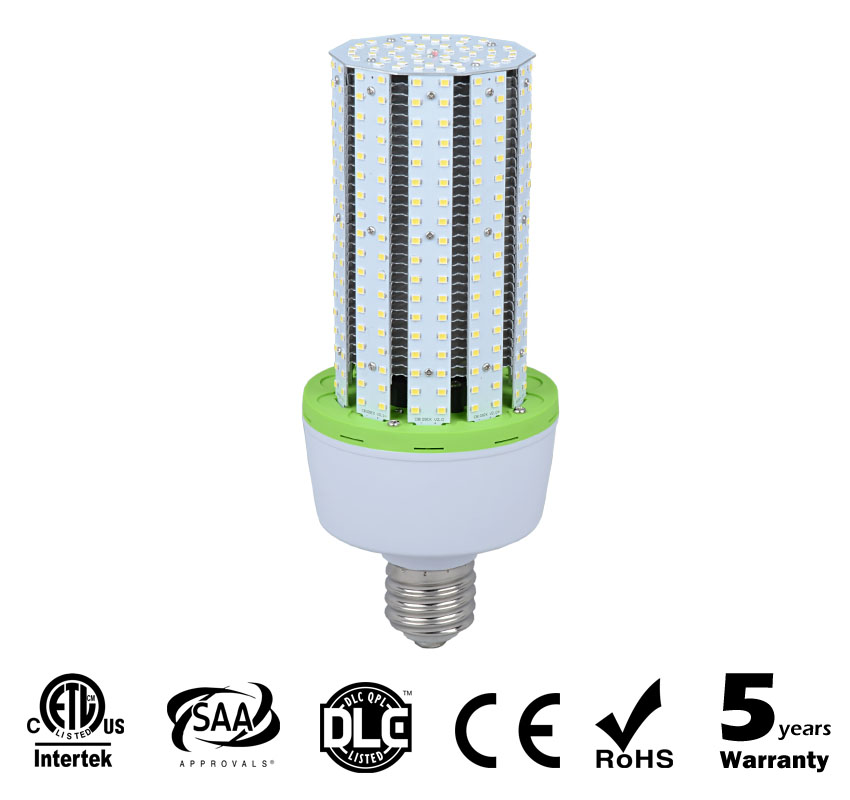

60W LED Corn Bulbs 7800Lm Equal 250W HID
  • 60W LED Corn Bulbs 7800Lm Equal 250W HID
  • 60W LED Corn Bulbs 7800Lm Equal 250W HID
  • 60W LED Corn Bulbs 7800Lm Equal 250W HID
  • 60W LED Corn Bulbs 7800Lm Equal 250W HID
  • 60W LED Corn Bulbs 7800Lm Equal 250W HID
  • 60W LED Corn Bulbs 7800Lm Equal 250W HID
60W LED Corn Bulbs 7800Lm Equal 250W HID60W LED Corn Bulbs 7800Lm Equal 250W HID60W LED Corn Bulbs 7800Lm Equal 250W HID60W LED Corn Bulbs 7800Lm Equal 250W HID60W LED Corn Bulbs 7800Lm Equal 250W HID60W LED Corn Bulbs 7800Lm Equal 250W HID

60W LED Corn Bulbs 7800Lm Equal 250W HID

●   Watt: 60W

●   Lumens: 7,800

●   Light Source: 2835 Epistar SMD

●   Input Volt: 100-277VAC

●   Size: 255*105mm

●   Lamp Weight: 0.87kg

●   Base: E40/ E39/ E27/ E26

●   CCT (Color Temp): 3000-6500K

●   5 years warranty

●   Milky cover,clear cover and NO cover options

Inquire Now Next Product

60W LED Corn Bulbs 7800Lm Equal 250W HID

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

ModelLSCB-60WXY
DLC NumberLSCB-60WE39NC
Watt60W
Lumen7,800
Efficiency130Lm/W±3%
Dimensions

No cover - E40: Dia105*255mm/ E27: Dia105*247mm

With cover - E40:Dia105*267mm/ E27:Dia105*258mm

Weight0.87kg
Replaces250W HID
CCT3000K 4000K 5000K 5700K 6500K
Input Voltage100-300VAC,50/60Hz
Power Factor>0.8
Cap TypeE40/E39 (mogul) E27/E26(Medium)
CoverMilky cover,clear cover and NO cover options
Light Source2835 Epistar SMD
Beam Angle360 degrees
IP Rating60
CRI>80
Body Temperature<50 Deg C  @Ta=25 Deg C
Ambient temperature-45 to + 50 Deg C
Rated Lifespan50,000+ hours
CertifiedETL cETL DLC SAA CE RoHS Listed


Size


led corn light 60w dimensions.jpg

ETL SAA DCL CE ROSH.jpg


Feature

  • Using high brightness of original packed Epistar 2835 SMD chip which

  • As the world's first new products ,LED corn bulb could replace the conventional compact CFL light directly .

  • Unique construction design easier for power supply and light source replacement if needed,with full beam angle (360 degrees).

  • Fin aluminum heat dissipation system(PATENT design).The fan of active air exchanging cooling system in order to speed up heat dissipation.

  • No spot, no black area, long life span and less brightness decay

  • Various lamp bases are available , a wide range of applications.(E39/E40 mogul, E26/E27 medium)

  • Wide voltage AC100-300V,High efficiency constant current drives,Efficiency of power supply is more than 90%.

  • No magnetic disturbance influence and CE & RoHS standard compliant.

  • No UV and near-IR radiation in the light beam.

  • ETL cETL TUV SAA CE RoHS certified.

  • 60 months warranty


Advantages

led replace hps.jpg

  led corn light aluminum fin bulit-in heat sink    Customer Review.jpg

Application

led corn light application

Replacement LED

CFL Replacement - Just plug in,run at 100~240VAC

led corn light CFL_ Replacement.jpg

HPS Replacement - Basllast or transformer should be bypassed before installation

led corn light HPS_ Replacement.jpg


Cases show

Street Post Top

Garden Post Top

Park Lighting

Gas Station Lighting

Acorn post top Lighting retrofit

19ft Street Post Top Bulb Retrofit

Beam angle

led corn light Beam Angle 360 degree

led corn light accessories.jpg

 lengthwidthheightGW(kg)
Inner Box (1pc)13cm13cm27cm0.45
Outer Carton (12pcs)55cm44cm34cm10.5


package dimmable led corn bulbs.jpg
