Food Grade LED High Bay Light is a lamp installed on high ceilings to illuminate food hygiene and safety. Crown series food lamps have IP69K waterproof and dustproof characteristics, energy saving, and the surface also adopts a smooth and particle-free design, which can be easily Flush clean.
● Wattage: 150W/ 200W
● Lumens: 32,000lm-40,000lm
● Light Source: Osram 2835
● Input Volts: 100-277VAC
● IP Rating: IP69K - IK10
● CCT (Color Temp): 3000K-6000K
● Luminaires are designed with no exposed screws
● Luminaires meet "glass-free" design requirements
● Fixture Color: White(Optional gray, Black, Orange)
● Beam Angle: 90/ 120 degree/ Tempered glass/ 60 aluminum reflector
● ETL/ DLC/ TUV/ CE/ CB/ SAA/ LM79/ LM80
● 5 years warranty
Model | LSCHB-150W(XXK) | |
| Watt | 100W/ 120W/ 150W | |
| Chip Brand | Lumileds 2835 | Lumileds 2835 |
| Lumen | 24,000 | 30,000 |
| Efficiency | 160Lm/W±3% | 200Lm/W±3% |
| Switchable wattages | 100W-120W-150W | |
| Driver | Sosen Driver | |
| Gross Weight | 5.4kg | |
| Input Volt | 100-277VAC, 50/60Hz | |
| Power Factor | >0.9 | |
| CRI | Ra80 | |
| Meterial | ADC12 Die-casting Aluminum | |
| Finish | Powder Coating | |
| Fixtures Color | White (Optional Gray, Black, Orange) | |
| Switchable CCT | Single CCT 3000K/ 4000K/ 5000K | |
| IP Rating | IK69K | |
| IK Rating | IK10 | |
| Control | 0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee | |
| Emergency Lighting | Emergency Battery 5W 180minutes | |
| Beam Angle | 90/ 120 degree optic/ Tempered glass/ 60 degree aluminum reflector | |
| Certifications | ETL, DLC, TUV, CE, CB, SAA, LM79, LM80 | |
| Warranty | 5 Years | |
Model | LSCHB-200W(XXK) | |
| Watt | 100W/ 150W/ 200W | |
| Chip Brand | Lumileds 2835 | Lumileds 2835 |
| Lumen | 32,000 | 40,000 |
| Efficiency | 160Lm/W±3% | 200Lm/W±3% |
| Switchable wattages | 100W-150W-200W | |
| Driver | Sosen Driver | |
| Gross Weight | 5.4kg | |
| Input Volt | 100-277VAC, 50/60Hz | |
| Power Factor | >0.9 | |
| CRI | Ra80 | |
| Meterial | ADC12 Die-casting Aluminum | |
| Finish | Powder Coating | |
| Fixtures Color | White (Optional Gray, Black, Orange) | |
| Switchable CCT | Single CCT 3000K/ 4000K/ 5000K | |
| IP Rating | IK69K | |
| IK Rating | IK10 | |
| Control | 0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee | |
| Emergency Lighting | Emergency Battery 5W 180minutes | |
| Beam Angle | 90/ 120 degree optic/ Tempered glass/ 60 degree aluminum reflector | |
| Certifications | ETL, DLC, TUV, CE, CB, SAA, LM79, LM80 | |
| Warranty | 5 Years | |
Food Grade LED High Bay Light
Crown Food Grade LED High Bay Light is a perfect indoor Food safe lighting solution for Food and beverage processing, Farming and agricultural facilities, Commercial kitchens, Manufacturing facilities.
100W/ 150W/ 200W
160-200Lm/W
3000K-6000K
IP69K
food processing plant;
DLC, ETL, TUV, SAA, CB, CE, LM79, LM80

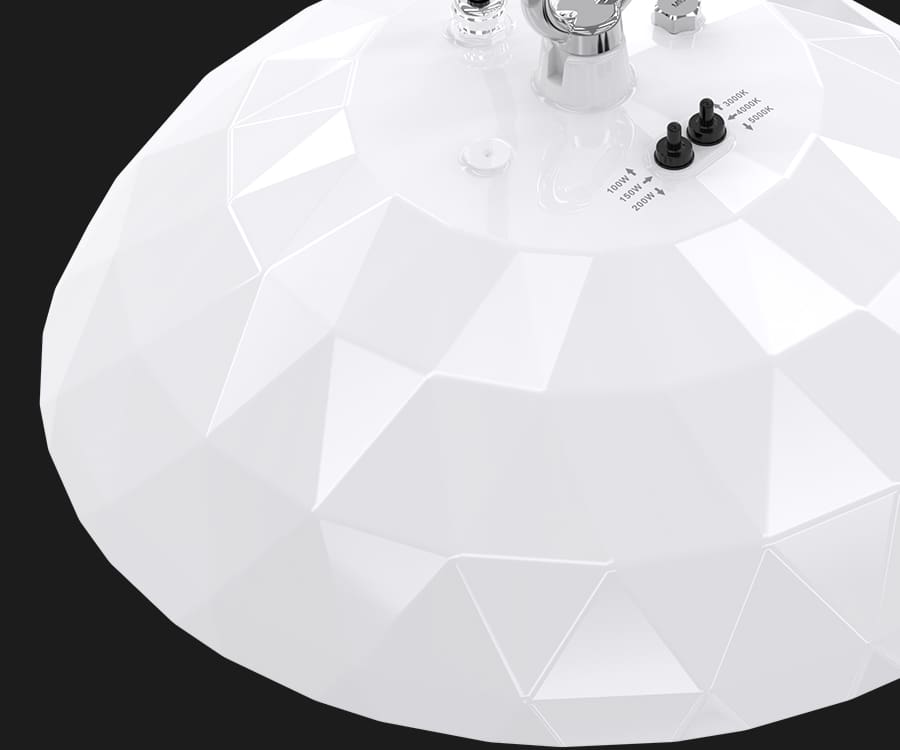

Dip switch
9 kinds of power and CCT can be combined,The adjustable wattage and CCT are convenient for inventory, and it is also more convenient to adjust the parameters of lighting according to demand.
9 kinds of power and CCT can be combined
High Quality Brand
Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>80, the light efficiency can reach 160-200Lm/W!
Super light efficiency, save up to 70% on energy costs by replacing your existing old bulbs;
Adequate lighting conditions can avoid many safety issues;
Lumileds 2835
Lumileds 3030
ADC12 Die-casting Aluminum
Adopt ADC12 die-casting aluminum integrated forming and forging, with larger heat dissipation area and better thermal conductivity.
The smooth design won't pile up dust and makes cleaning work quite easy and save much labor cost.
ADC12 Die-casting Aluminum
IP69K Protection
Food-processing application needs to be hosed down frequently for cleaning, and IP69K is a must. LSCHB with perfect weatherproof structure is no problem to reach IP69K, which was tested and verified at harshest environment. The surface treatment is outdoor usage powder coating, to make the light corrosion-resistant and anti-aging.
Water pressure: 1450PSI
Water temperature: 85℃
IP69K
Optional Color
The default standard of lamps is white, and customers can choose gray, black and orange according to their needs.
White
Gray
Black
Orange

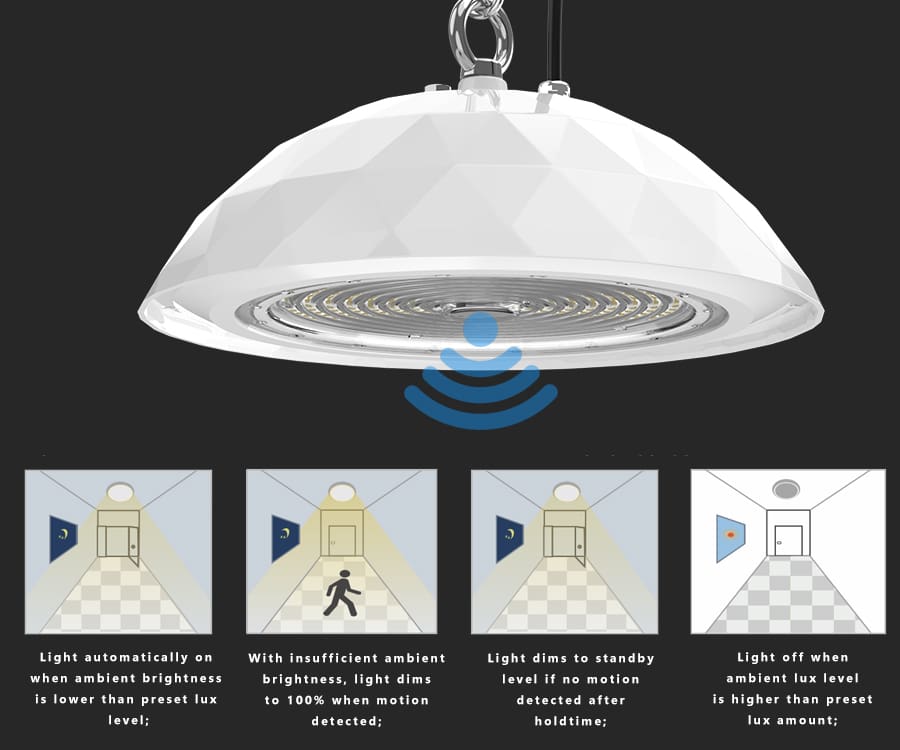

Motion Sensor Optional
Item with either optic or tempered glass is available with motion sensor
1.Light automatically on when ambient brightness is lower than preset lux level;
2.With insufficient ambient brightness, light dims to 100% when motion detected;
3.Light dims to standby level if no motion detected after holdtime;
4.Light off when ambient lux level is higher than preset lux amount;
Motion Sensor
Reflector and Aluminum Reflector
The optional prismatic reflector creates a more even distribution of light sending light out in all directions. Recommended for installations at lower ceiling heights.
PC Reflector without end cap
60degree Aluminum Reflector
Beam Angle
The luminaire can be optionally configured with beam angles of 60/90/120 degrees.

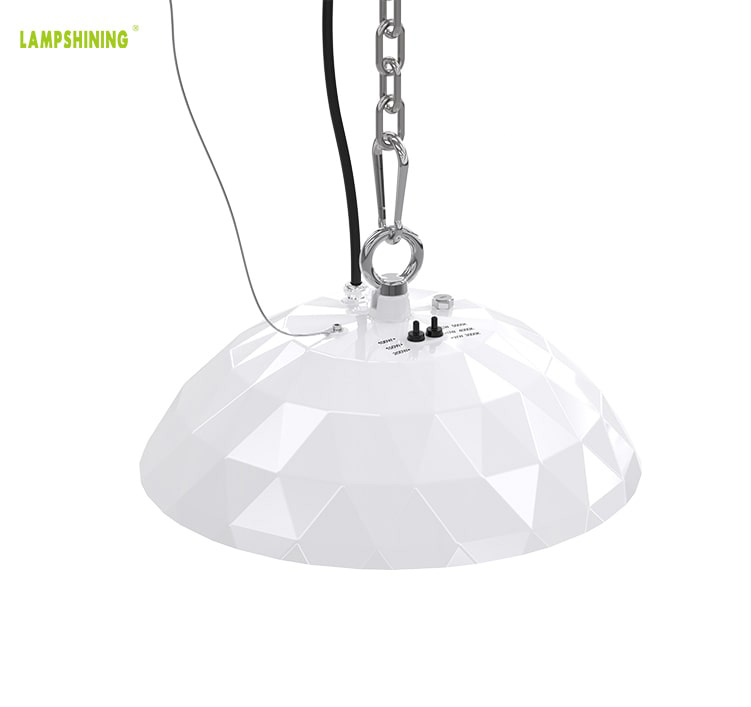

Eyebolt Mount/ Pendant Mount
60
90
120
Application
Specially designed for Food & Beverage,industries, Supermarket, Brewhouse and Car washed.
| Watt | Size |
| 150W/ 200W | 1pc/ 402mm*147mm |
