● Watt: 40W
● Lumens: 6,600
● Light Source: Lumileds 2835
● Input Volt: 100-277VAC
● IP Rating: IP66 - IK08
● Arm Dia: 60-80mm
● SPD: 10KV or 20KV(Optional)
● Size: Φ430x464.8mm
● CCT (Color Temp): 3000, 4000, 5000, 5700, 6000
● Beam Angle: T5(140*140)/ 120 degree/ T2/ T3/ T4
● 5 years warranty
| Model | LSPT-40W(XXK) | |
| Watt | 40W | |
| Efficiency | 6,600lm(165Lm/W±3%) | |
| Input Volt | 100-277VAC | |
| Chip Brand | Lumileds 2835 | |
| CCT | 3000K 4000K 5000K 5700K 6000K | |
| Arm Dia | 60-80mm | |
| Cover | Tempered glass/ Milky Acrylic | |
| SPD | 10KV or 20KV(Optional) | |
| Size | Φ430x464.8mm | |
| Beam Angle | T5(140*140)/ T2/ T3/ T4 | |
| Driver | Moso X6-042V052L | |
| Certification | ENEC, TUV, CE, CB, SAA, RoHS, LM79, LM80, TM21, IK08, IP66, Spray test | |
| Other optional wattage(10W-80W) | |||||
| LSPT-10W-LV(XXK) | 10W | LSPT-15W-LV(XXK) | 15W | LSPT-20W-LV(XXK) | 20W |
| LSPT-25W-LV(XXK) | 25W | LSPT-30W-LV(XXK) | 30W | LSPT-35W-LV(XXK) | 35W |
| LSPT-40W-LV(XXK) | 40W | LSPT-45W-LV(XXK) | 45W | LSPT-50W-LV(XXK) | 50W |
| LSPT-55W-LV(XXK) | 55W | LSPT-60W-LV(XXK) | 60W | LSPT-65W-LV(XXK) | 65W |
| LSPT-70W-LV(XXK) | 70W | LSPT-75W-LV(XXK) | 75W | LSPT-80W-LV(XXK) | 80W |

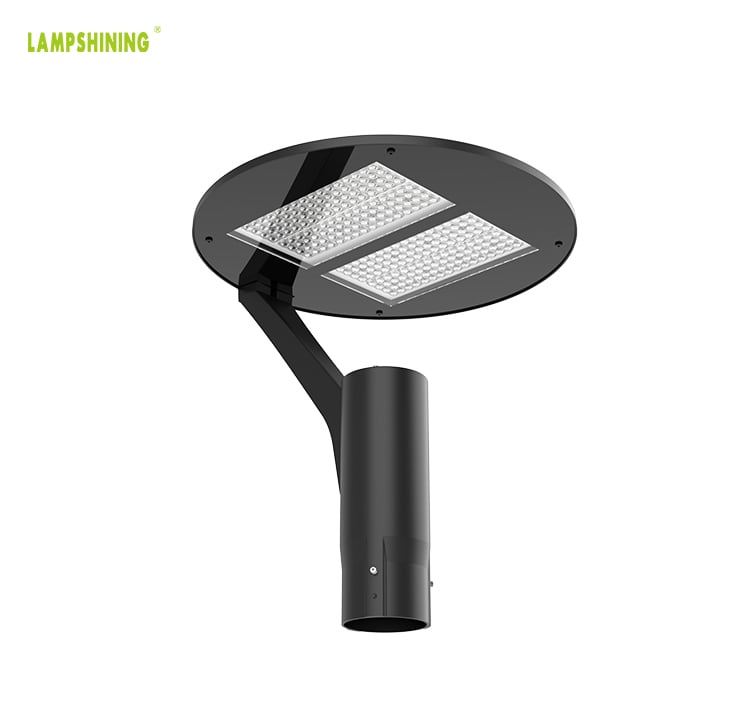

Skyline LED Post Top Lights 30W
Skyline LED Post Top Lights is a perfect Outdoo lighting solution for parks gardens and pathways.
30W
170Lm/W
3000K-6000K
ENEC TUV CE CB SAA RoHS
LM79 LM80 TM21 Salt Spray test approved
High brightness
Using high-quality lamp beads to reduce light waste, the utilization rate of light is higher, CRI>70, the light efficiency can reach 170Lm/W!
Lumileds 2835
Aluminum radiator
Uses aluminum radiator and sheet metal frame.
Aluminum radiator
Waterproof & Lightning Protection
The lamps have passed the waterproof IP66 and anti-impact IK08 tests, and are equipped with 10KA lightning arresters. Even in bad weather outdoors, it can ensure that the lamps are not affected and work normally, increasing road safety.
50,000H
-40-55℃
Installation Hole
Used for outdoor poles with a diameter of 60-80mm
60mm
80mm
Other Series
We have several series of landscape street lights to choose from to adapt to different lighting environments.
Beam Anlge
The beam angle can be selected from T2 T3 T4 T5(140*140 degree). Professional light distribution angle can better achieve uniform and efficient lighting effect.
T2
T3
T4
T5(140*140 degree)
Installation
1.Single post 10-18 ft. Mounting heights(Spider / Cantilever mount only);
2.Twin mount arm 18-22 ft. Mounting height 's (Spider / Cantilever mount only);
3.Wall mount arm 8-10 ft. Mounting heights (Spider / Cantilever mount only);
Single post
Twin mount arm
Wall mount arm
Application
It is very suitable for road landscape lighting in parks, residential areas, gardens, villas, courtyards, scenic spots, greenways, roads, commercial streets, squares, and scenic spots.
Accessories
| Photocell | Photocell |  |
| NEMA 7pins+Short Cap |  | |
| Surge Protection Device | 10KA |  |
| Mounting | 60-80mm |  |
| Watt | Size |
| 30W | 1pc/ Φ430x464.8mm |
