● Watt: 20W
● Lumens: 2,400
● Light Source: Lumileds 3030
● Input Volt: 100-277VAC
● IP Rating: IP65 - IK10
● Size: 675*280mm
● Arm Diameter: 2'' & 3''
● Lamp Weight: 5.3kg
● CCT (Color Temp): 4000,5000,5700k
● 5 years warranty
● Beam Angle: 90/ 120 degree
Specifications
| Model | LSPT-20W(XXK) |
| Watt | 20W |
| Lumens | 2,400 |
| Efficiency(with arm) | 120Lm/W±3% |
| Efficiency(without arm) | 140Lm/W±3% |
| Input Volt | 100-277VAC |
| LED Brand | Lumileds 3030 |
| Driver | Sosen SS-30VA-56 |
| IP & IK Rating | IP65* IK10 |
| Beam Angle | 90 / 120 degree |
| Arm Diameter | 2"& 3" |
| IP Rating | IP65 |
| Color Temp | 3000K,4000K,5000K,5700K |
| Heat dissipation | Aluminum heat dissipation system |
| Lifetime | Rated Life of 50,000 Hours |
| Dimension | 675*280 |
| Certification | TUV CE CB RoHS certified |
20W TUV CE CB RoHS LED Post Top Light
Size
Features and benefits
1.5 year warranty
2.No camera flickering
3.Photocell sensor available
4.Available in tempered glass or LENS
5.Long life span and less brightness degradation
6.Efficiency of power supply is more than 90%
7.NO UV and near-IR radiation in the light beam
8.passed TUV CE CB RoHS certification
Light source

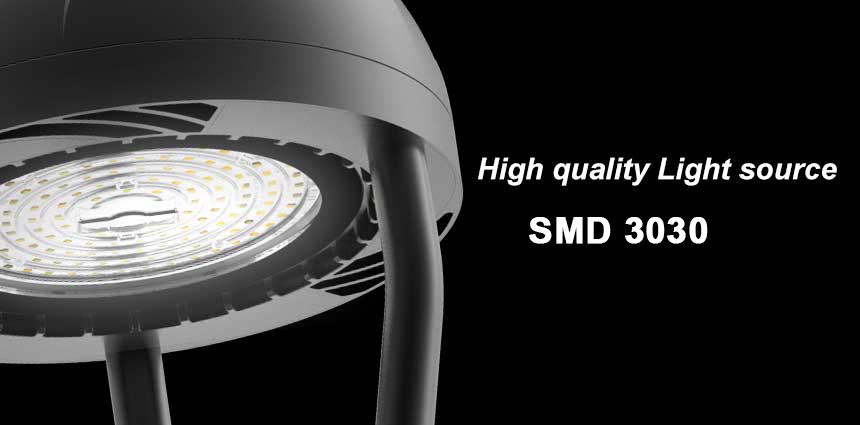

The 20W LED Post Top Light uses High quality Lumileds 3030 Light source.
Waterproof IP65
1.Anti-dust design, able to be with flushable cleaning
2.IP65(TUV report available)
3.Can't be immersed into the water
IK10
IK10: blow with a baseball bat, projectiles, kicks.
Application
If you want to know more details about the product, or need to provide lighting design for your venue, please feel free to contact us.
Beam Angle
90/ 120 degree
Accessories
| Photocell sensor |  |
Package
Package details (Packed in accessorries) | 1pc/ 66 x 36 x 21cm GW: 5.3Kg 20ft container: 560pcs 40ft container: 1120pcs |
Package details (Packed in finished unit) | 1pc/ 75X36X36cm GW: 5.3Kg 20ft container: 280pcs 40ft container: 580pcs |
Contact Us for Quote & Lighting Opinion
