● Watt: 150W
● Lumens: 21,000/ 27,000
● Light Source: Cree 3030/ Lumileds 3030
● Input Volt: 347-480VAC
● IP Rating: IP65 - IK10
● Size: 20.3*163.15"
● Installation Hole: 2.5''
● Lamp Weight: 6.8kg
● CCT (Color Temp): 3000-6500K
● 5 years warranty
● Beam Angle: 80*155 degree (TypeIII)
| Model | LSSB-150W-LV(XXK) |
| watta | 150W |
| Lumen | 21,000 |
| Efficiency | 140LM/W±3% |
| Light Source | Cree 3030 |
| Input Volt | 340-480VAC |
| CCT | 3000-6500K |
| Default | Slip fitter |
| Installation Hole | 64mm/ 2.5'' |
| Size | 20.3*163.15" |
| Weight | 6.8kg |
| IP Rating | IP65 |
| Beam Angle | 80*155 degree (TypeIII) |
| Lifetime | 50,000+hours |
| Driver | Sosen driver SS-150VA-56 |
| Replacement | 350W HID/Metal Halide |
| Certification | ETL cETL CE RoHS |
| Model | LSSB-150W-LV(XXK) |
| watta | 150W |
| Lumen | 27,000 |
| Efficiency | 180Lm/W±3% |
| Light Source | Lumileds 5050 |
| Input Volt | 340-480VAC |
| CCT | 4000K/ 5000K |
| Default | Slip fitter |
| Installation Hole | 64mm/ 2.5'' |
| Size | 20.3*163.15" |
| Weight | 6.8kg |
| IP Rating | IP65 |
| Beam Angle | 80*155 degree (TypeIII) |
| Lifetime | 50,000+hours |
| Driver | Sosen driver SS-150VA-56 |
| Replacement | 350W HID/Metal Halide |
| Certification | ETL cETL CE RoHS |

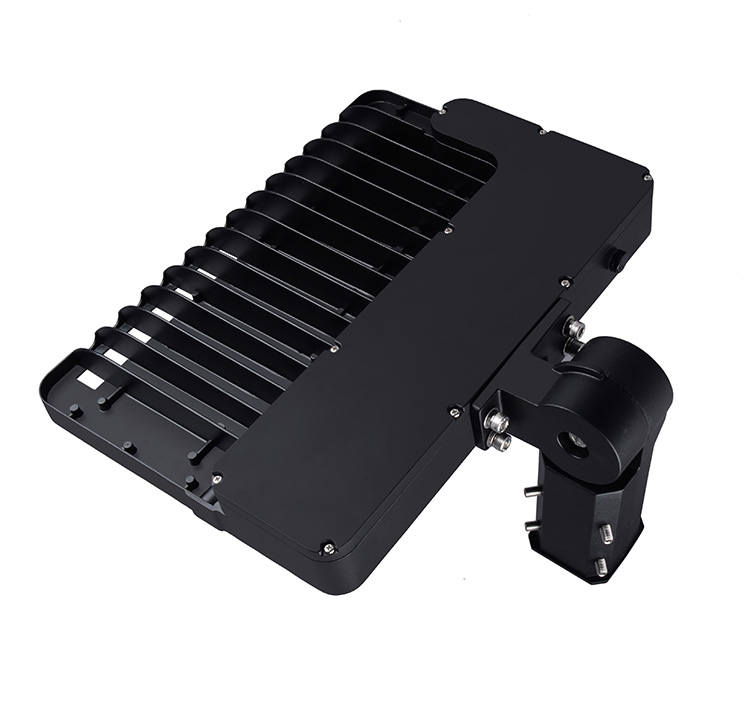

150W LED Shoebox Light
150W LED Shoebox Light is a perfect Outdoor lighting solution for garden, street, parking lot.
150W
Cree 3030/ Lumileds 5050
140-180Lm/W
3000K-6500K
ETL DLC CE RoHS
High quility LED Brand
Uses Cree 3030/ Lumileds 5050, High Efficiency 140-180Lm/W.
Cree 3030
Lumileds 5050
ADC12 Pure Aluminum
The radiator is made of ADC12 pure aluminum die-casting, with good quality and better heat dissipation.
ADC12 pure aluminum
IP66 Waterproof
Waterproof IP66 design allows led shoebox light to withstand harsh environments;
Waterproof IP66
Optional Features
Photocell, Dimmable 0-10v, NEMA Socket
Photocell
Dimmable 0-10v
NEMA Socket
Optional Arms
LED Shoebox Light can be equipped with various mounting arms: (A) slip fitter (B) square mount arm kit (C) round mount arm kit (D) Yoke bracket
(A) slip fitter
(B) square mount arm kit
(C) round mount arm kit
(D) Yoke bracket
Beam Angle
The beam angle can be selected from 80*155 degree. Professional light distribution angle can better achieve uniform and efficient lighting effect.
80*155 degree
Application
Mainly used in road lighting, parking lot lighting, garden lighting, etc.
Accessories
| Slip fitter |  |
| Square mount arm kit |  |
| Round mount arm kit |  |
| Yoke bracket |  |
| Twist Lock Photocell |  |
Package details:
1pc/59*48*15cm
GW:6.8kg
