1440W LED Sports Lighting,3000-6000K,170LM/W, 204000 lumens,100-277V, 3000W Equivalent

● Watt: 1440W

● Lumens: 230.040/ 244,800

● Light Source: Lumileds 5050

● Input Volt: 100-277VAC

● IP Rating: IP66 - IK10

● Size: 860*650*188mm

● Lamp Weight: 22kg

● CCT (Color Temp): 3000-6000

● 5 years warranty

● Beam Angle: 10/20/40/60/90/140*100/135*60(P50)

● Price: 1-9999(Contact us)

Inquire Now Next Product Specification Sheet

Product Details

Accessories Options

Dimensions

160Lm/W →
170Lm/W →
185Lm/w →

Model No.	LSHM‐B1440W‐LV(XXK)
Watt	1440W
Lumen	230,040
Efficiency	160Lm/W±3%
Input Volt	100-277VAC
Chip Brand	Lumileds 5050
CCT	3000K 4000K 5000K 5700K 6500K
Weight	22kg
Size	860650188mm
Beam Angle	10/ 20/ 40/ 60/ 90 degree/ 140100/ 13560 degree(P50)
Driver	Meanwell 6pcs XLG-240-H-A/ ELG-240-48A
Wind rating	51.0-56.0m/s
IP Rating	IP66 & IK10
CRI	Ra70 (Ra80, Ra90 optional)
Dimmable	Optional dimmable and non-dimmable
Certification	ENEC REACH ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 Salt Spray test approved
Life Time	L90B10>100,000hrs
Warranty	5 Years / 7 years extended warranty available

Model No.	LSHM‐B1440W‐LV(XXK)
Watt	1440W
Lumen	244,800
Efficiency	170Lm/W±3%
Input Volt	100-277VAC
Chip Brand	Lumileds 5050
CCT	4000K, 5000K
Weight	22kg
Size	860650188mm
Beam Angle	10/ 20/ 40/ 60/ 90 degree/ 140100/ 13560 degree(P50)
Driver	Meanwell 6pcs XLG-240-H-A/ ELG-240-48A
Wind rating	51.0-56.0m/s
IP Rating	IP66 & IK10
CRI	Ra70 (Ra80, Ra90 optional)
Dimmable	Optional dimmable and non-dimmable
Certification	ENEC REACH ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 Salt Spray test approved
Life Time	L90B10>100,000hrs
Warranty	5 Years / 7 years extended warranty available

Model No.	LSHM‐B1440W‐LV(XXK)
Watt	1440W
Lumen	266,400Lm
Efficiency	185Lm/w±5%
Input Volt	100-277VAC
Chip Brand	Lumileds 5050
CCT	3000K~6000K
Weight	22kg
Size	860650188mm
Beam Angle	25° / 40° / 60°
Driver	Meanwell or Sosen drive
Wind rating	51.0-56.0m/s
IP Rating	IP66 & IK10
CRI	Ra70 (Ra80, Ra90 optional)
Dimmable	Optional dimmable and non-dimmable
Certification	ENEC REACH ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 Salt Spray test approved
Life Time	L90B10>100,000hrs
Warranty	5 Years / 7 years extended warranty available

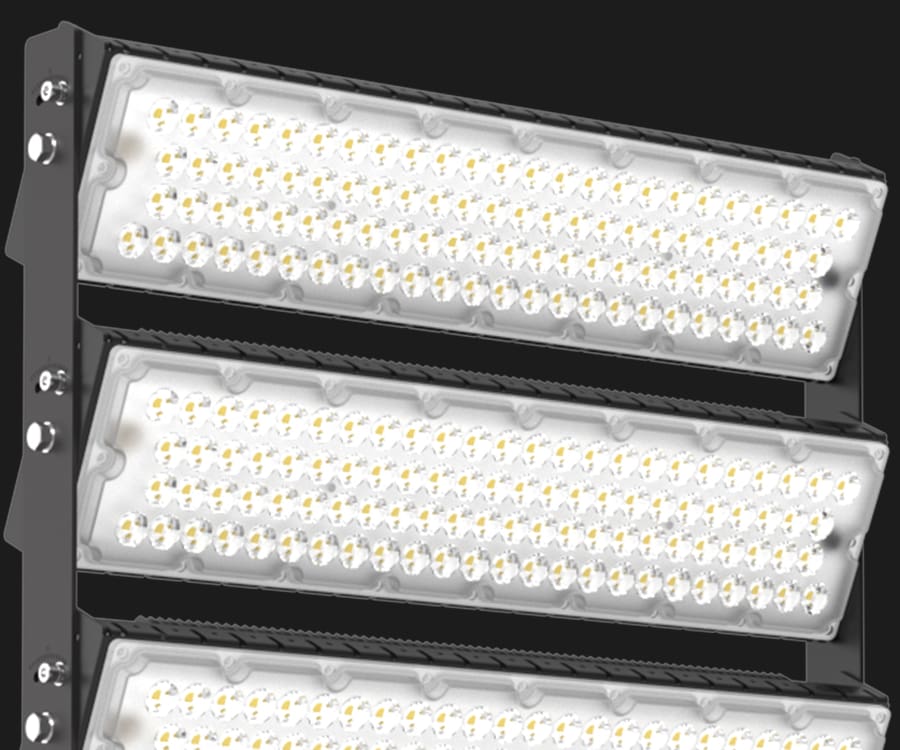

Slim Pro LED Stadium Flood Light 1440W

Slim Pro LED Stadium Flood Light is a perfect Outdoor lighting solution for Stadium.

1440W

Lumileds 5050

160Lm/W/ 170Lm/W

3000K-6000K

ETL DLC ENEC TUV CE CB SAA RoHS

LM79 LM80 TM21 Salt Spray test approved

High quility LED Brand

Uses Lumileds 5050, High Efficiency 170Lm/W.

Lumileds 5050

Folding aluminum fin design

Lightweight, fast heat dissipation. Increase the heat dissipation surface area by air coolingto dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good.

Folding aluminum fin

IP66 & Lightning protection & IK10

IP66 & Lightning protection & IK10. Waterproof IP66 and lightning protection 10/20KV, IK10 protective design allows Slim pro led sports light to withstand harsh environments;

IP66

Lightning protection

IK10

Module Rotatable

Module Rotatable ±25° ,Separate module can be mounted on the same robust bracket to offer the utmost flexibility.

Module Rotatable

Breathable Pressure Relief Vent Plug

Each module of slim pro led sport light comes with M20 Waterproof Breathable Pressure Relief Vent Plug

M20 Waterproof Breathable Pressure Relief Vent Plug

Other Watt

Slim ProE LED Flood Light is available in wattage from 400W to 1440W, which is the best choice to replace the existing MH/HID Outdoor Area lights of 1000W-3000W.

Beam Angle

The optical lens is made of PC, and the transmittance reaches 92%,reducing light loss,maximize the lumens on where it should be lit up and evenness, minimize lighting pollution to nature and human life.

10°

20°

40°

60°

90°

135*60°(P50)

Application

Airports, stadiums, docks, construction sites, construction towers, highway crossroads, highways, shipyards, aircraft factories
