● Watt: 800W
● Lumens: 128,000/ 140,000
● Light Source: Lumileds 5050
● Input Volt: 100-277VAC
● IP Rating: IP66 - IK10
● Size: 650*597*188mm
● Lamp Weight: 16kg
● CCT (Color Temp): 3000, 4000, 5000, 6000
● 5 years warranty
● Beam Angle: 10/20/40/60/90/140*100/135*60(P50)
● Price: 1-9999(Contact us)
| Model No. | LSHM‐B800W‐LV(XXK) |
| Watt | 800W |
| Lumen | 128,000 |
| Efficiency | 160Lm/W±3% |
| Input Volt | 100-277VAC |
| Chip Brand | Lumileds/ Osram 5050 |
| CCT | 3000K 4000K 5000K 5700K 6500K |
| Modules | None Rotatable |
| Weight | 16kg |
| Size | 650*597*188mm |
| Beam Angle | 10/ 20/ 40/ 60/ 90 degree/ 140*100/ 135*60 degree(P50) |
| Driver | Meanwell 4pcs XLG-240-H-A/ ELG-240-48A |
| Driver(Optional) | Sosen 4pcs SS-200VA-56 |
| Wind rating | 51.0-56.0m/s |
| IP Rating | IP66 & IK10 |
| CRI | Ra70 (Ra80, Ra90 optional) |
| Dimmable | Optional dimmable and non-dimmable |
| Certification | ENEC REACH ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 Salt Spray test approved |
| Life Time | L90B10>100,000hrs |
| Warranty | 5 Years / 7 years extended warranty available |
| Model No. | LSHM‐B800W‐LV(XXK) |
| Watt | 800W |
| Lumen | 140,000 |
| Efficiency | 175Lm/W±3% |
| Input Volt | 100-277VAC |
| Chip Brand | Lumileds 5050 |
| CCT | 4000K, 5000K |
| Modules | None Rotatable |
| Weight | 16kg |
| Size | 650*597*188mm |
| Beam Angle | 10/ 20/ 40/ 60/ 90 degree/ 140*100/ 135*60 degree(P50) |
| Driver | Meanwell 4pcs XLG-240-H-A/ ELG-240-48A |
| Driver(Optional) | Sosen 4pcs SS-200VA-56 |
| Wind rating | 51.0-56.0m/s |
| IP Rating | IP66 & IK10 |
| CRI | Ra70 (Ra80, Ra90 optional) |
| Dimmable | Optional dimmable and non-dimmable |
| Certification | ENEC REACH ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 Salt Spray test approved |
| Life Time | L90B10>100,000hrs |
| Warranty | 5 Years / 7 years extended warranty available |
| Model No. | LSHM‐B800W‐LV(XXK) |
| Watt | 800W |
| Lumen | 144,000Lm |
| Efficiency | 190Lm/w±5% |
| Input Volt | 100-277VAC |
| Chip Brand | Lumileds 5050 |
| CCT | 3000K~6000K |
| Modules | None Rotatable |
| Weight | 16kg |
| Size | 650*597*188mm |
| Beam Angle | 25° / 40° / 60° |
| Driver | Meanwell or Sosen drive |
| Wind rating | 51.0-56.0m/s |
| IP Rating | IP66 & IK10 |
| CRI | Ra70 (Ra80, Ra90 optional) |
| Dimmable | Optional dimmable and non-dimmable |
| Certification | ENEC REACH ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 Salt Spray test approved |
| Life Time | L90B10>100,000hrs |
| Warranty | 5 Years / 7 years extended warranty available |

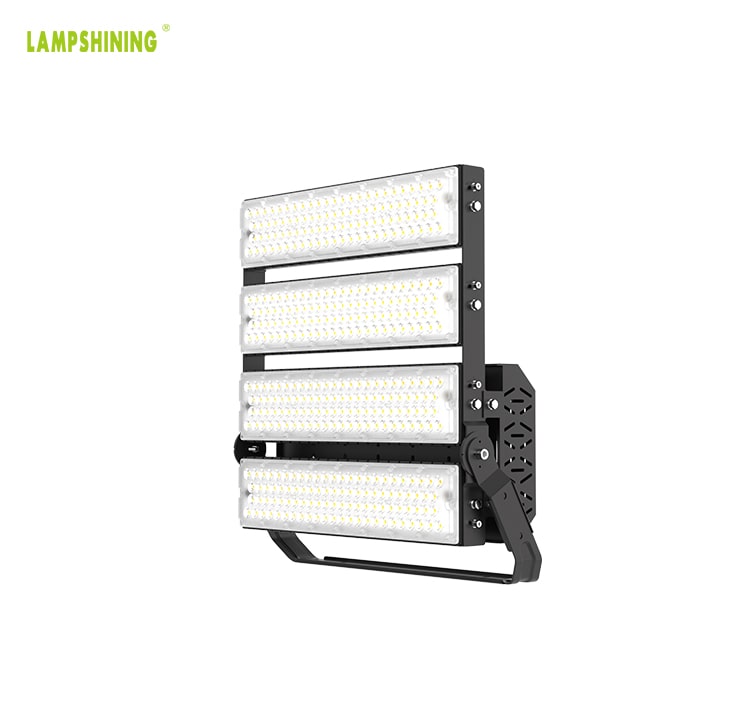

Slim Pro LED Stadium Flood Light 800W
Slim Pro LED Stadium Flood Light is a perfect Outdoor lighting solution for Stadium.
800W
Lumileds 5050
160Lm/W/ 175Lm/W
3000K-6000K
ETL DLC ENEC TUV CE CB SAA RoHS
LM79 LM80 TM21 Salt Spray test approved
High quility LED Brand
Uses Lumileds 5050, High Efficiency 160-175Lm/W.
Lumileds 5050
Folding aluminum fin design
Lightweight, fast heat dissipation. Increase the heat dissipation surface area by air coolingto dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good.
Folding aluminum fin
IP66 & Lightning protection & IK10
IP66 & Lightning protection & IK10. Waterproof IP66 and lightning protection 10/20KV, IK10 protective design allows Slim pro led sports light to withstand harsh environments;
IP66
Lightning protection
IK10
Module Rotatable
Module Rotatable ±25° ,Separate module can be mounted on the same robust bracket to offer the utmost flexibility.
Module Rotatable
Breathable Pressure Relief Vent Plug
Each module of slim pro led sport light comes with M20 Waterproof Breathable Pressure Relief Vent Plug
M20 Waterproof Breathable Pressure Relief Vent Plug
Other Watt
Slim ProE LED Flood Light is available in wattage from 400W to 1440W, which is the best choice to replace the existing MH/HID Outdoor Area lights of 1000W-3000W.
Beam Angle
The optical lens is made of PC, and the transmittance reaches 92%,reducing light loss,maximize the lumens on where it should be lit up and evenness, minimize lighting pollution to nature and human life.
10°
20°
40°
60°
90°
135*60°(P50)
Application
Airports, stadiums, docks, construction sites, construction towers, highway crossroads, highways, shipyards, aircraft factories
Accessories
| 347-480VAC Sosen driver | |
| 1-10V Dimmable | |
| 10KV or 20KV SPD | |
| Slip fitter |  |
| Round Installation plate |  |
| Anti glared visor |  |
| Laser pointer |  |
| Remote driver box |  |
| Watt | Size |
| 800W | 1pc/ 650*597*188mm |
