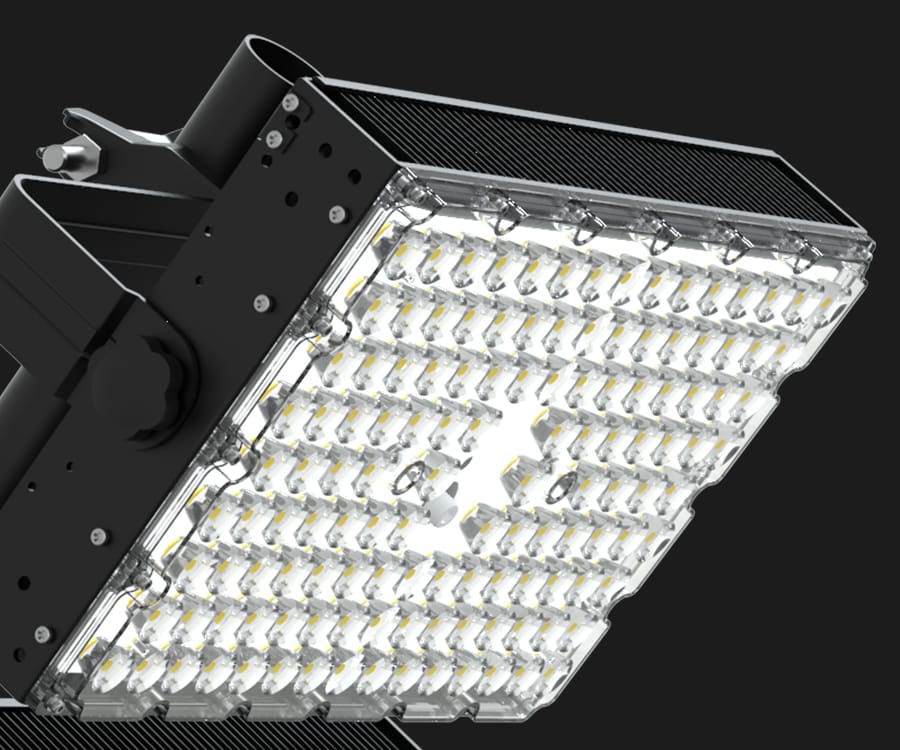

LED Area Flood Light Fixture 600W - 2 Module Black Rotatable 170Lm/W Outdoor Pole Uniform Illumination

●   Watt: 600W

●   Lumens: 102,000

●   Light Source: Lumileds/ Osram 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP66 - IK10

●   Size: 420*787*540mm

●   Lamp Weight: 15kg

●   CCT (Color Temp): 4000, 5000

●   5 years warranty

●   Beam Angle: 20/ 40/ 60 degree

Inquire Now Next Product

LED Area Flood Light Fixture 600W - 2 Module Black Rotatable 170Lm/W Outdoor Pole Uniform Illumination

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
Model

LSDHM-600W-LV(XXK)MAX

Watt600W
Lumen102,000
Efficiency170Lm/W±3%
Driver

Meanwell Driver 2pcs ELGC-300-H-A

Input Volt100-277VAC
Chip BrandLumileds/ Osram 5050
CCT4000K-6000K
Weight15KG / 33 lbs
SizeL420 x W787 x H540mm L16.5" X W31" X H21.3"
Beam Angle20/ 40/ 60 degree
CertificationETL TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved

Dragonfly LED  Sports Light 600W

Dragonfly LED Sports Light 600W

Dragonfly LED Sports Light is a perfect Outdoor lighting solution for sports area, stadium.

600W

Lumileds 5050

170Lm/W

3000K-6000K

ETL TUV CE CB SAA RoHS

LM79 LM80 TM21 IK10 Salt Spray test approved

High quility LED Brand

High quility LED Brand

Uses Lumileds 5050, High Efficiency 170Lm/W.

Lumileds 5050

Folding aluminum fin design

Folding aluminum fin design

Lightweight, fast heat dissipation. Increase the heat dissipation surface area by air coolingto dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good.

Folding aluminum fin design

Driver box

Driver box

The module is separated from the driver, and the driver box can be installed separately under the light pole for easy maintenance in the future days.Drivers and modules come with female/male connectors.

Driver box is separable

Stainless steel

Stainless steel

The fixed buckle of the module is made of stainless steel and the left and right direction of the module can be adjusted by ±45 degree;

Stainless steel

Rotatable

Rotatable

1.Rotating scale on the luminaire for customers to adjust the angle more accurately;

2.Rotatable up and down, Left and Right ±45degree;

3.Rotatable 360 degree Left and Right;

Rotatable Module

Breathable Pressure Relief Vent Plug

Breathable Pressure Relief Vent Plug

Each module of dragonfly max led sport light comes with M20 Waterproof Breathable Pressure Relief Vent Plug


M20 Waterproof Breathable Pressure Relief Vent Plug

IP66 & Lightning protection & IK10

IP66 & Lightning protection & IK10

IP66 & Lightning protection & IK10. Waterproof IP66 and lightning protection 10/20KV, IK10 protective design allows dragonfly max led sports light to withstand harsh environments;

IP66

Lightning protection

IK10

Other Watt

Dragonfly LED Sports Light is available in wattage from 200W to 1800W, which is the best choice to replace the existing MH/HID street lights of 500W-4000W.

High uniformity and flexibility

High uniformity and flexibility

Each module can be matched with any light distribution angle to achieve the most uniform illumination.

The available beam angles are 20, 40 and 60 degree.

20 degree

40 degree

60 degree

Application

Can illuminate intersections, squares, docks, ships, ports, construction sites, cranes,Tennis courts, basketball courts, soccer fields, etc.

Accessories

347-480VAC Sosen driver

1-10V Dimmable
10KV SPD
Anti glare shieldAnti glare shield
Safety hook+1.5m chainSafety hook+1.5m chain


WattSize
600W1pc/ 420*787*540mm

600W Dragonfly Max LED Sports Light size
