LED High Mast Lights knock down kit module targets 150-1200W.
● Watt: 150W 200W 240W
● Light Source: Lumileds 5050
● Input Volt: 100-277VAC
● IP &IK Rating: IP66 & IK10
● Lamp Weight: 3.2kg
● CCT (Color Temp): 3000~6000k
● Beam Angle: (Symmetrical) 25° 40° 60° 90°
● Beam Angle: (Asymmetrical) P50
● Lifespan: L90B10>100,000hrs
● 5 years warranty
Model | LSHM-150W-(XXK)PLUS | LSHM-200W-(XXK)PLUS | LSHM-240W-(XXK)PLUS |
| Watt | 150W | 200W | 240W |
| Chip Brand | Lumileds 5050 | ||
| Lumen | 24,750Lm | 32,000Lm | 37,200Lm |
| Efficiency | 165lm/w±5% | 160lm/w±5% | 155lm/w±5% |
| 2-Module | 300W | 400W | 480W |
| 3-Module | 450W | 600W | 720W |
| 4-Module | 600W | 800W | 960W |
| 5-Module | 750W | 1000W | 1200W |
| Driver | Inventronics / Sosen driver | ||
| Gross Weight | 3.2kg | ||
| Input Volt | 100-277VAC, 50/60Hz | ||
| Power Factor | >0.95 | ||
| CRI | Ra>70 ,Optional with Ra>80 or Ra>90 | ||
| Bracket Materials | Iron / Optional with Aluminum die casting | ||
| Meterial | Folding aluminum fin design which are very light weight.5mm thickness turnnion bracket | ||
| Finish | Powder Coating | ||
| SPD | 10KV / 20KV Optional | ||
| Fixtures Color | Black | ||
| CCT | 3000K~6000K | ||
| IP Rating | IP66 | ||
| IK Rating | IK10 | ||
| Lifespan | L90B10>100,000hrs | ||
| Control | 0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee,Dali2.0 & DMX | ||
| Beam Angle(Symmetrical) | 25° 40° 60° 90° | ||
| Beam Angle(Asymmetrical) | P50 | ||
| Certifications | ENEC / TUV / CE/ CB/SAA/RoHS/LM79/LM80/IK10 Salt Spray test | ||
| Warranty | 5 Years | ||
Model | LSHM-150W-(XXK)PLUS | LSHM-200W-(XXK)PLUS | LSHM-240W-(XXK)PLUS |
| Watt | 150W | 200W | 240W |
| Chip Brand | Lumileds 5050 | ||
| Lumen | 27,000Lm | 35,000Lm | 40,800Lm |
| Efficiency | 180lm/w±5% | 175lm/w±5% | 170lm/w±5% |
| 2-Module | 300W | 400W | 480W |
| 3-Module | 450W | 600W | 720W |
| 4-Module | 600W | 800W | 960W |
| 5-Module | 750W | 1000W | 1200W |
| Driver | Inventronics / Sosen driver | ||
| Gross Weight | 3.2kg | ||
| Input Volt | 100-277VAC, 50/60Hz | ||
| Power Factor | >0.95 | ||
| CRI | Ra>70 ,Optional with Ra>80 or Ra>90 | ||
| Bracket Materials | Iron / Optional with Aluminum die casting | ||
| Meterial | Folding aluminum fin design which are very light weight.5mm thickness turnnion bracket | ||
| Finish | Powder Coating | ||
| SPD | 10KV / 20KV Optional | ||
| Fixtures Color | Black | ||
| CCT | 3000K~6000K | ||
| IP Rating | IP66 | ||
| IK Rating | IK10 | ||
| Lifespan | L90B10>100,000hrs | ||
| Control | 0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee,Dali2.0 & DMX | ||
| Beam Angle(Symmetrical) | 25° 40° 60° 90° | ||
| Beam Angle(Asymmetrical) | P50 | ||
| Certifications | ENEC / TUV / CE/ CB/SAA/RoHS/LM79/LM80/IK10 Salt Spray test | ||
| Warranty | 5 Years | ||
Plus SKD LED High Mast Lights
Module SKD
Facilitate inventory and reduce inventory pressure.
Easy maintenance and quick update of modules.
LED High Mast Lights knock down kit module targets 150W-1200W.
2pcs Module :300W 400W 480W
3pcs Module :450W 600W 720W
4pcs Module :600W 800W 960W
5pcs Module :750W 1000W 1200W
Folding Aluminum fin
Folding aluminum fin design which are very light weight,Marine grade aluminum housing.
Module Adjustable:A single module can be adjusted ±25°
Reduced Shipping, Tariffs And Warehouse Costs
Component mode transportation reduces packaging, shipping, and warehouse space.
This results in cost savings for freight, customs, and warehousing,
particularly beneficial for distributors who require spare warehouses.
Single modules assembled into a case.
Multiple modules assembled into a case

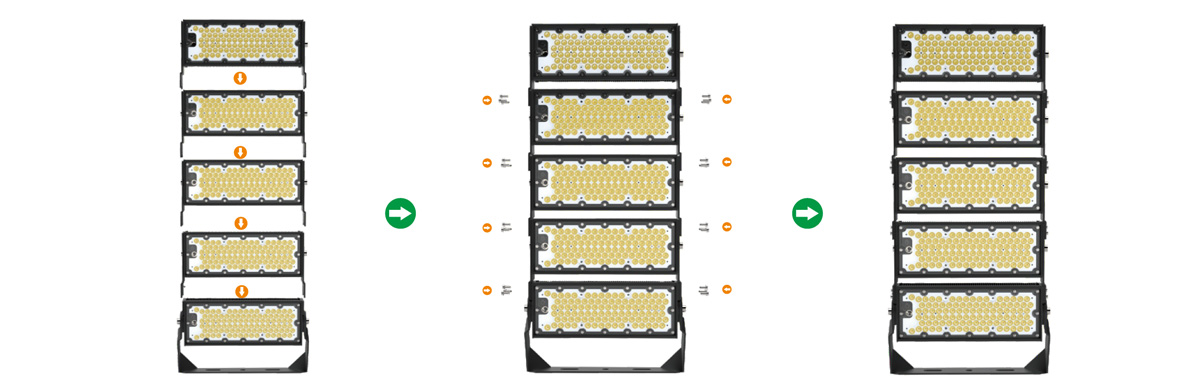

EASY Combination
M15 fast male and female plug and play, only need to stock two kinds of wires can be quickly assembled multiple module power.
Application
For area lighting for interior and exterior applications:
Airport, golf course, factories, plants, warehouse, exhibition halls, gym, seaport, highway, high mast lighting and
bmx sportlighting etc.
LED Baseball Field Lights,Field Hockey Lighting,Football Field Lights,Golf Course Lighting & Driving Range Lights
LED Polo Field Lighting,Race Track Lights,LED Track and Field Lighting,LED Shooting Range Lights
Ski Mountain Lights,Soccer Field Lights,Softball Field Lights,LED Sports Field Lighting
LED Sports Light Retrofits,Tennis Court Lights,LED Wiffle Ball Field Lights,Outdoor Perimeter Lighting
LED Bridge Lighting,Crane Lights,LED Shipyard Lighting,LED Construction Lights,Commercial LED Security Lighting
