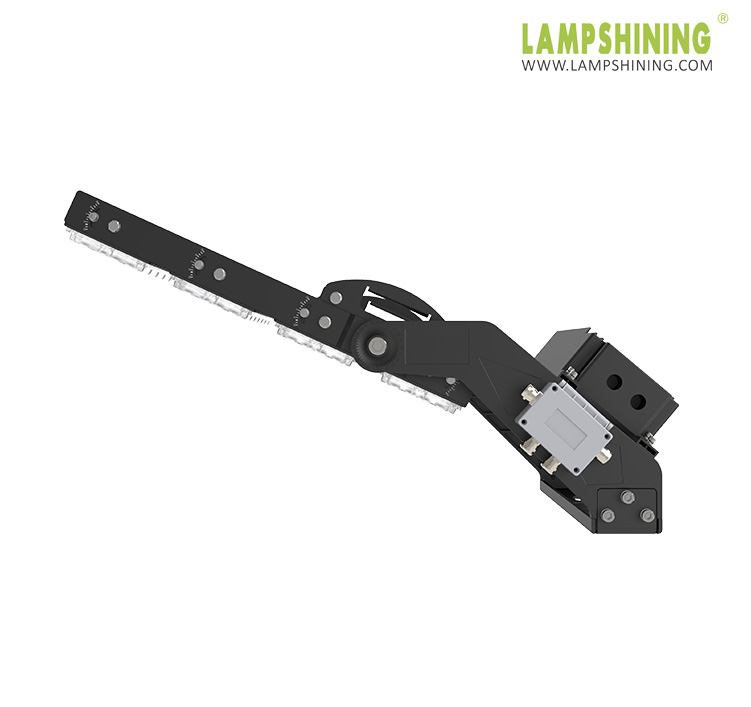

900W & 1000w ProX LED High Mast Lights LED Stadium Flood Lights LED Sports Lighting,Low glare sports lighting for outdoor courts and fields

  • High luminaire efficiency up to 200Lm/w

  • Marine grade aluminum housing

  • IP66 and IK10 protection rate

  • Comes with DMX and Dali function,remote driver box available

  • Folding aluminum fin design which is very light weight

  • 5mm thickness turnnion bracket

  • Both single module and full lamp are rotatable

  • Power supply is mounted away from heat sink which ensures great lifespan of the power supply

  • Asymmetrical P50-L & P60 optics produce very low Glare Rating, GR<45,lights were forwarded further away which produces a higher uniformity up to 0.8

  • 5 years warranty


Inquire Now Next Product

900W & 1000w ProX LED High Mast Lights LED Stadium Flood Lights LED Sports Lighting,Low glare sports lighting for outdoor courts and fields

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet

Model

LSHM-1000W-LV(XXK)ProXLSHM-1000W-LV(XXK)ProX
Watt900W1000W
Chip BrandLumileds 5050
Lumen144,000Lm160,000Lm
Efficiency  160Lm/w±3%160Lm/w±3%
P50 Lumen Efficiency (Asymmetrical)150Lm/w±3%150Lm/w±3%
Driver

Moso Driver

Gross Weight19.5kg
Input Volt198~440Vac 50/60Hz
Power Factor>0.95
CRIRa>70 ,Optional with Ra>80 or Ra>90
FuctionDali2.0 & DMX
SPD10KV

Bracket materials

Aluminum die casting

ModulesRotatable 88°
CCT3000K~6000K
LifespanL90B10>100,000hrs
IP RatingIP66
IK RatingIK10
Glare Rating<45
Control0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee
Beam Angle(Symmetrical)10° 20° 40°  60°  90°
Beam Angle(Asymmetrical)P50
CertificationsENEC / TUV / CE / CB / SAA / RoHS / LM79 / LM80 / TM21/ IK10 / Salt Spray
Warranty5 Years


Model

LSHM-900W-LV(XXK)ProXLSHM-1000W-LV(XXK)ProX
Watt900W1000W
Chip BrandLumileds 5050
Lumen157,500Lm170,000Lm
Efficiency  175lm/w±3%170lm/w±3%
P50 Lumen Efficiency (Asymmetrical)155Lm/w±3%162Lm/w±3%
P60-L Lumen Efficiency (Asymmetrical)135Lm/w±3%140Lm/w±3%
Driver

Moso Driver

Gross Weight19.5kg
Input Volt198~440Vac 50/60Hz
Power Factor>0.95
CRIRa>70 ,Optional with Ra>80 or Ra>90
FuctionDali2.0 & DMX
SPD10KV

Bracket materials

Aluminum die casting

ModulesRotatable 88°
CCT3000K~6000K
LifespanL90B10>100,000hrs
IP RatingIP66
IK RatingIK10
Glare Rating<45
Control0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee
Beam Angle(Symmetrical)10° 20° 40°  60°  90°
Beam Angle(Asymmetrical)P50
CertificationsENEC / TUV / CE / CB / SAA / RoHS / LM79 / LM80 / TM21/ IK10 / Salt Spray
Warranty5 Years

Model

LSHM-900W-LV(XXK)ProXLSHM-1000W-LV(XXK)ProX
Watt900W1000W
Chip BrandLumileds 5050
Lumen157,500Lm190,000Lm
Efficiency  175lm/w±3%190lm/w±5%
Driver

Moso Driver

Gross Weight19.5kg
Input Volt198~440Vac 50/60Hz
Power Factor>0.95
CRIRa>70 ,Optional with Ra>80 or Ra>90
FuctionDali2.0 & DMX
SPD10KV

Bracket materials

Aluminum die casting

ModulesRotatable 88°
CCT3000K~6000K
LifespanL90B10>100,000hrs
IP RatingIP66
IK RatingIK10
Glare Rating<45
Control0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee
CertificationsENEC / TUV / CE / CB / SAA / RoHS / LM79 / LM80 / TM21/ IK10 / Salt Spray
Warranty5 Years

No upper light output ratio (ULOR 0%) when mounted at 0° & 10° tilt

No upper light output ratio (ULOR 0%) when mounted at 0° & 10° tilt

PROX LED high mast lights are modular in design with various asymmetrical beam angles for precise lighting distribution,

professional optical lens for sports field P50&P60-L can be mounted at 0° horizontally to reduce wind resistance,

No upper light output ratio (ULOR 0%) when mounted at 0° tilt. The drive power supply is convenient for various

installation applications and uses a folded fin aluminum heat sink with key features such as small size, light weight,

good heat dissipation, and favorable price. Optional DMX, DALI2.0 intelligent control.


Lamp tilted up 0°

Lamp tilted up 10°

Polarized Light Design Asymmetrical optic P50&P60-L

Polarized Light Design Asymmetrical optic P50&P60-L

No overflow upward lights which emits no light pollution to sky,no light pollution to audiences or neighbors'space

Asymmetrical optical lenses like P50 and P60L can be an effective way to reduce light pollution and direct light where it's needed. These lenses are designed to distribute light asymmetrically, focusing more light in one direction than another, which can be useful for illuminating specific areas without creating excess glare or light pollution.


No overflow upward lights

No light pollution to sky

No light pollution

Football Field 100*64m simulation based

Football Field 100*64m simulation based

Football Field 100*64m simulation based on LSHM-1000W-LV(XXK)ProX P60-L asymmetrical optic


low Glare Rating, GR<45

higher uniformity up to 0.8

Low glare stadium LED lighting fixtures

Low glare stadium LED lighting fixtures

Low glare stadium LED lighting fixtures are designed to provide high-quality illumination with minimal glare. Glare is the sensation of brightness caused by excessive brightness or brightness differences in the visual field, which can cause discomfort, visual fatigue, and reduced visibility.


Low glare stadium LED lighting fixtures are designed to minimize these effects by providing uniform illumination that is easy on the eyes. These fixtures often feature asymmetric optical lenses that distribute light asymmetrically, focusing more light in one direction than another. This helps to illuminate specific areas without creating excess glare or light pollution.


Low glare stadium LED lighting fixtures often feature glare control technology, which helps to reduce the amount of glare produced by the fixtures. This can be achieved through the use of anti-glare screens, diffusers, or other technologies that help to reduce the amount of light that is reflected or refracted in unwanted directions.


low glare stadium LED lighting fixtures are an excellent choice for sports stadiums and other large outdoor areas where effective and efficient lighting is needed without compromising on visual comfort and safety. These fixtures provide excellent illumination while minimizing glare, providing a comfortable and safe environment for players and spectators alike.

No overflow upward lights

No light pollution to sky

Low Glare Rating GR<45

Uniformity(U0) up to 0.8

PROX LED Stadium Flood Lights are an excellent choice for outdoor areas where durable and reliable lighting is needed.

PROX LED Stadium Flood Lights are an excellent choice for outdoor areas where durable and reliable lighting is needed.

The 600W 720W PROX LED High Mast Lights are designed to withstand harsh outdoor conditions while providing excellent illumination for large areas. These lights feature a low wind resistance design, ensuring that they can withstand strong winds and other adverse weather conditions.


The turnnion bracket of the 600W 720W PROX LED High Mast Lights is made from 5mm thick material, which provides super toughness and ensures that the lights remain securely mounted even in high wind conditions. This bracket is designed to minimize vibrations and ensure that the lights remain stable and secure at all times.


The IP66 and IK10 protection rate of the 600W 720W PROX LED High Mast Lights means that they are highly resistant to dust, water, and physical impact. This ensures that the lights remain protected from the elements and can provide reliable illumination even in harsh outdoor conditions.


The 10KV surge protection feature of the 600W&720W PROX LED High Mast Lights helps to protect the lights from electrical surges, which can cause damage and reduce the lifespan of the lights. This feature ensures that the lights remain functional and reliable over time, providing excellent illumination for large areas with minimal maintenance requirements.


IP66

IK10

10KV ro 20KV SPD

PROX Series LED High Mast Lights 400W~1440W

400w 480w ProX LED High Mast Lights LED Stadium Flood Lights

600w 720w ProX LED High Mast Lights LED Stadium Flood Lights

1000W ProX LED High Mast Lights LED Stadium Flood Lights

1200W ProX LED High Mast Lights LED Stadium Flood Lights

1440W ProX LED High Mast Lights LED Stadium Flood Lights

Application

For area lighting for interior and exterior applications:

Airport, golf course, factories, plants, warehouse, exhibition halls, gym, seaport, highway, high mast lighting and

bmx sportlighting etc.

LED Baseball Field Lights,Field Hockey Lighting,Football Field Lights,Golf Course Lighting & Driving Range Lights

LED Polo Field Lighting,Race Track Lights,LED Track and Field Lighting,LED Shooting Range Lights

Ski Mountain Lights,Soccer Field Lights,Softball Field Lights,LED Sports Field Lighting

LED Sports Light Retrofits,Tennis Court Lights,LED Wiffle Ball Field Lights,Outdoor Perimeter Lighting

LED Bridge Lighting,Crane Lights,LED Shipyard Lighting,LED Construction Lights,Commercial LED Security Lighting


NO Spill Light and Glare Stadium Lighting

NO Spill Light and Glare Stadium Lighting

NO Spill Light and Glare Stadium Lighting

NO Spill Light and Glare Stadium Lighting

Spill-glare-control LED Sports Lighting

Spill-glare-control LED Sports Lighting

Spill-glare-control LED Sports Lighting

Spill-glare-control LED Sports Lighting

Spill-glare-control LED Sports Lighting
