● Watt: 200W/ 240W/ 300W
● Lumens: 43,200/ 43,200/ 51,000
● Light Source: Lumileds 5050
● Input Volt: 46-48VDC
● IP Rating: IP65 - IK08
● Size: 234*230.4*50mm
● Lamp Weight: 2.6kg
● CCT (Color Temp): 4000,5000K
● 5 years warranty
● Beam Angle: 20/ 40/ 60 degree
| Model | LSM-200W-MAX |
| Watt | 200W |
| Lumen | 43,200 |
| Efficiency | 200Lm/W±3% |
| Driver | Not included |
| Input Volt | 46-48VDC |
| Chip Brand | Lumileds 5050/ Osram 5050 |
| CCT | 4000K,5000k |
| Weight | 2.6kg |
| Size | 234*230.4*50mm |
| Plug | M15 Male Plug |
| IP & IK Rating | IP66 & IK10 |
| Life Time | L70/B10 >50,000hours |
| Warranty | 5 Years warranty |
| Dimmable | Dimmable and Non-dimmable |
| Beam Angle | 20/ 40/ 60 degree |
| Certification | Reach |
| Model | LSM-240W-MAX |
| Watt | 240W |
| Lumen | 43,200 |
| Efficiency | 180Lm/W±3% |
| Driver | Not included |
| Input Volt | 46-48VDC |
| Chip Brand | Lumileds 5050/ Osram 5050 |
| CCT | 4000K,5000k |
| Weight | 2.6kg |
| Size | 234*230.4*50mm |
| Plug | M15 Male Plug |
| IP & IK Rating | IP66 & IK10 |
| Life Time | L70/B10 >50,000hours |
| Warranty | 5 Years warranty |
| Dimmable | Dimmable and Non-dimmable |
| Beam Angle | 20/ 40/ 60 degree |
| Certification | Reach |
| Model | LSM-300W-MAX |
| Watt | 300W |
| Lumen | 51,000 |
| Efficiency | 170Lm/W±3% |
| Driver | Not included |
| Input Volt | 46-48VDC |
| Chip Brand | Lumileds 5050/ Osram 5050 |
| CCT | 4000K,5000k |
| Weight | 2.6kg |
| Size | 234*230.4*50mm |
| Plug | M15 Male Plug |
| IP & IK Rating | IP66 & IK10 |
| Life Time | L70/B10 >50,000hours |
| Warranty | 5 Years warranty |
| Dimmable | Dimmable and Non-dimmable |
| Beam Angle | 20/ 40/ 60 degree |
| Certification | Reach |

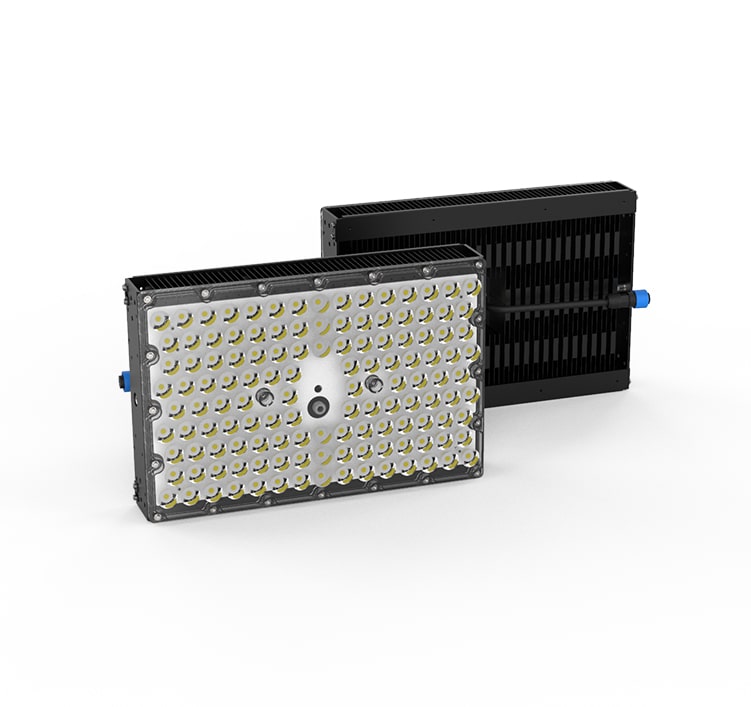

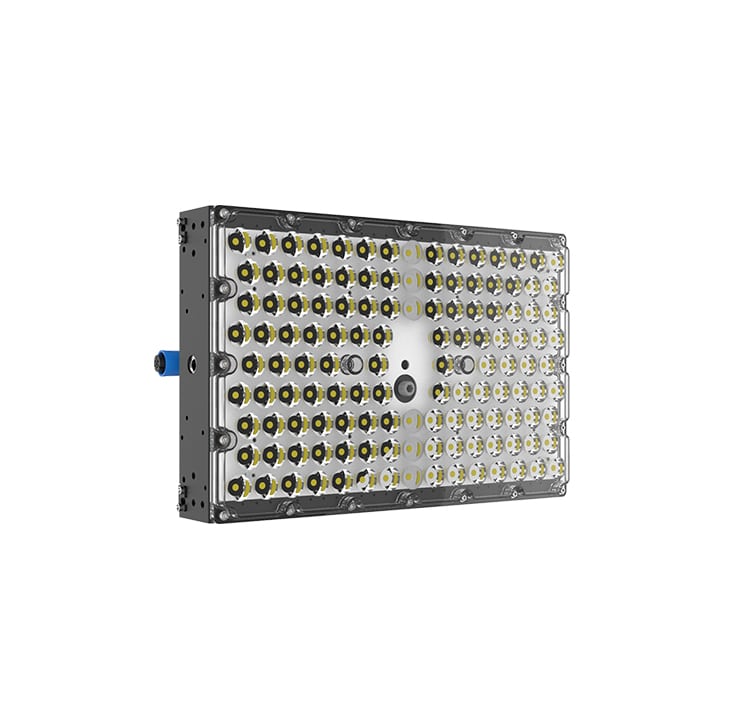

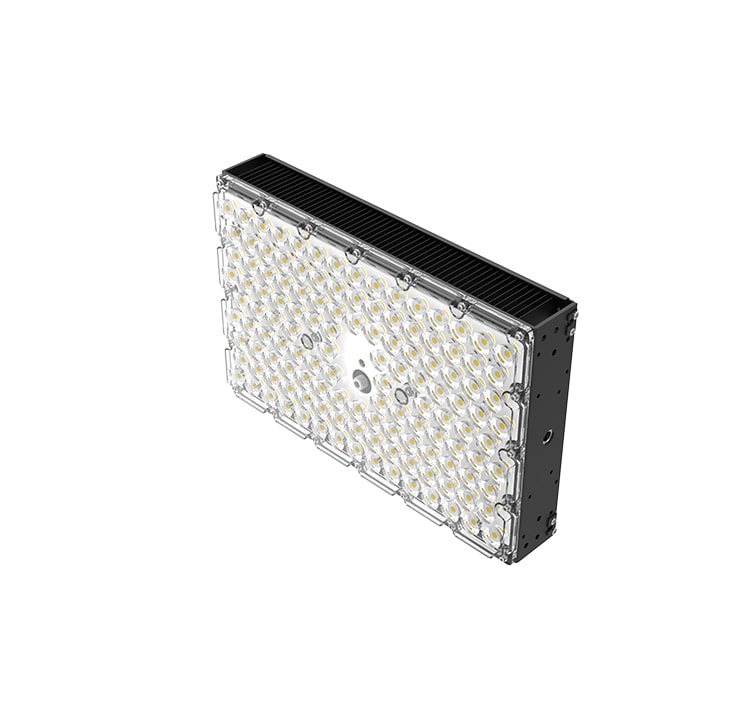

200W-300W Dragonfly Max LED Module Light
200W-300W Dragonfly Max LED Module Light is a perfect Outdoor lighting solution for area, street, stadium.
200W/ 240W/ 300W
Lumileds/ Osram 5050
170-200Lm/W
4000K-5000K
Marine grade painting

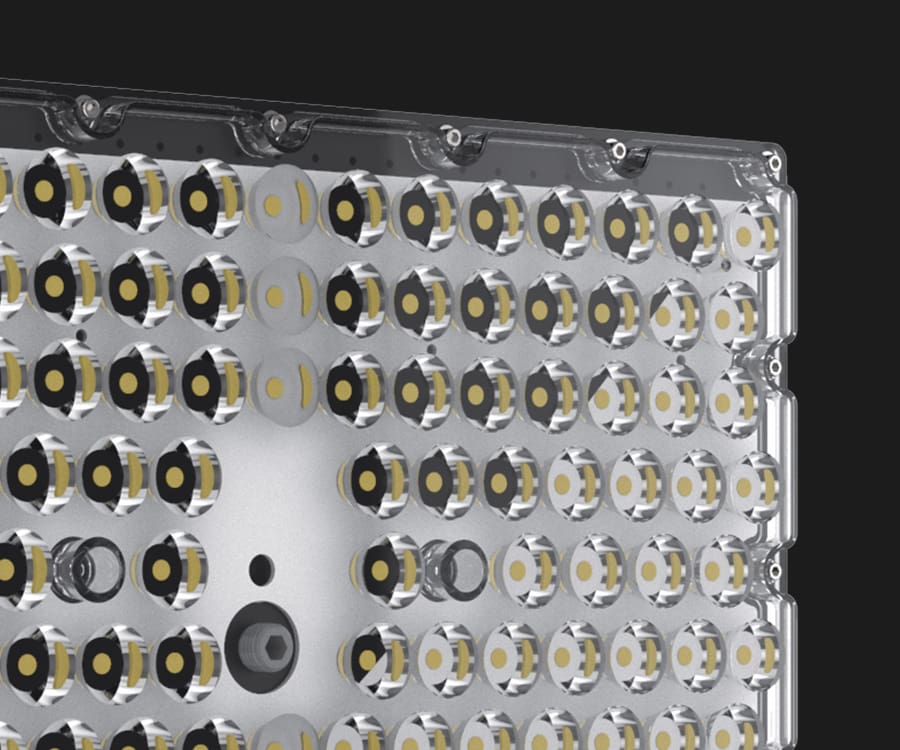

High quility LED Brand
Uses Lumileds/ Osram 5050, High Efficiency 170-200Lm/W.
Lumileds 5050
Osram 5050

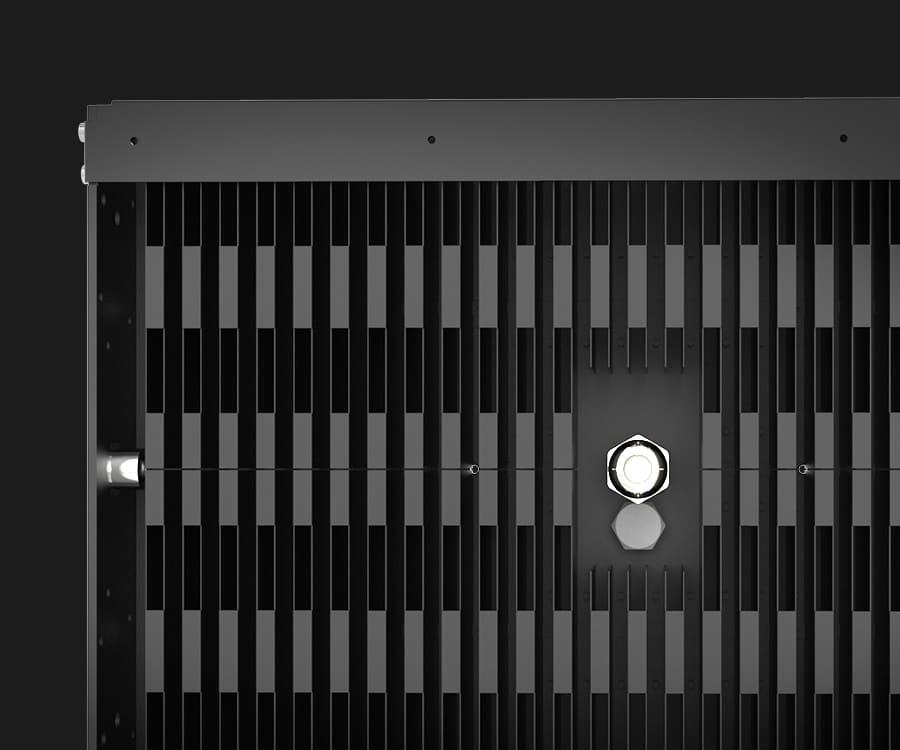

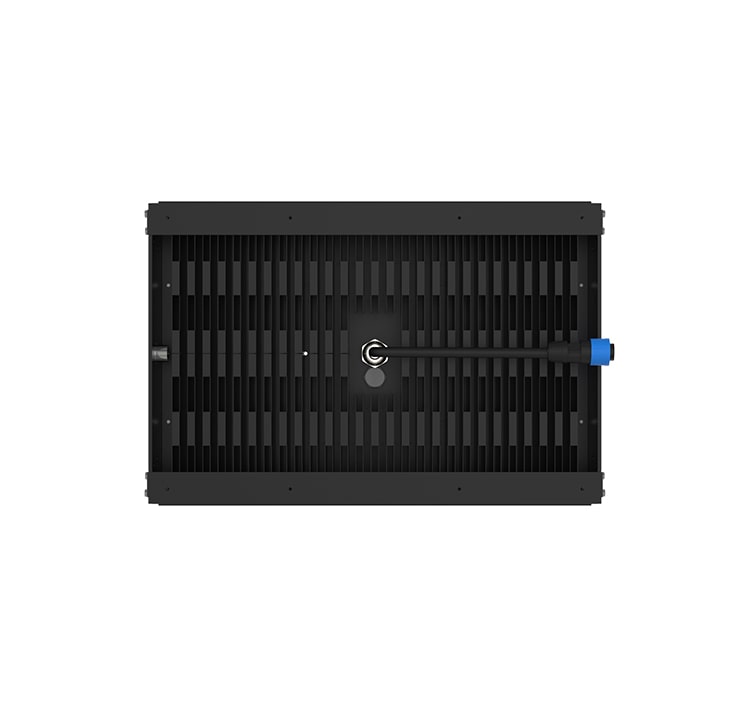

Folding aluminum fin design
Folding fin radiator, the pure aluminum degree of the fins reaches more than 95%, the lightweight design is die-casting, cold forging, and 50% of the weight of the profile design, which greatly reduces the load-bearing of the installation light pole, and can be installed quickly.
Folding aluminum fin design
Lightweight

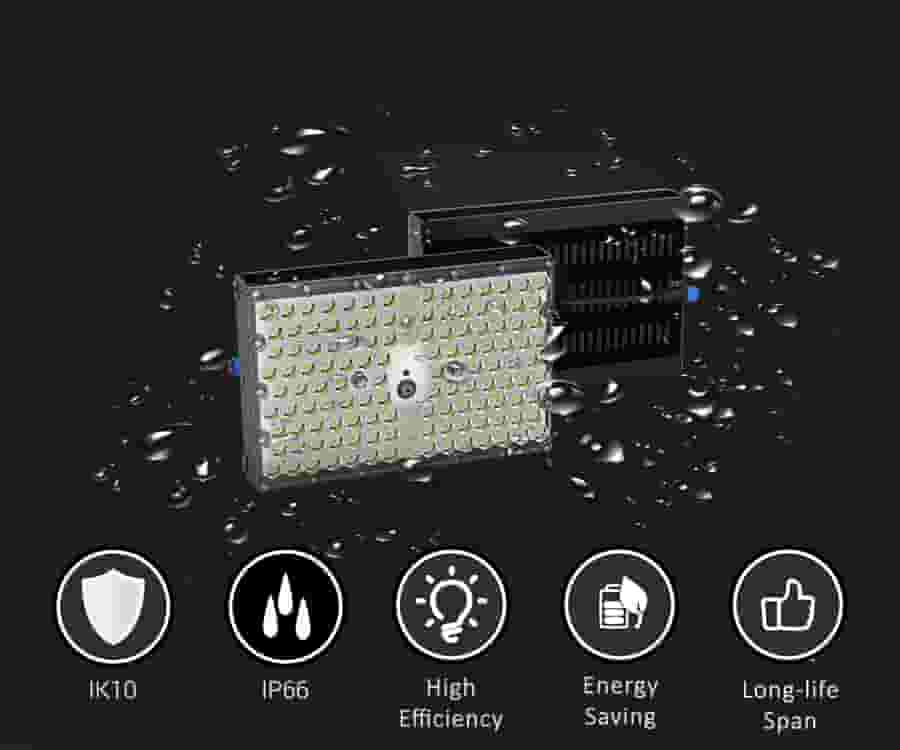

IP66 & Lightning protection & IK10
Waterproof IP66 & IK10 protective design allows led light to withstand harsh environments;
IP66
IK10

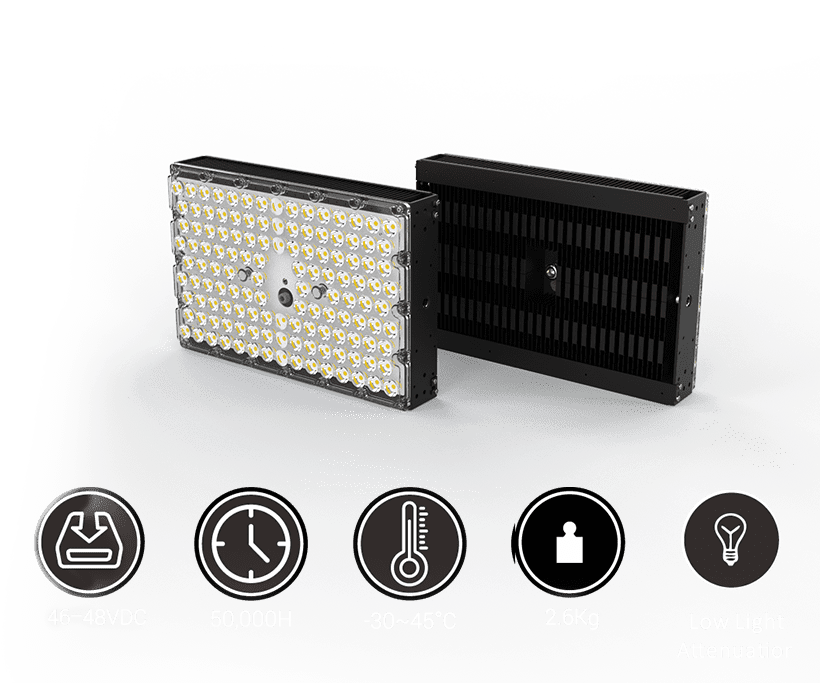

50,000H
-30~45℃

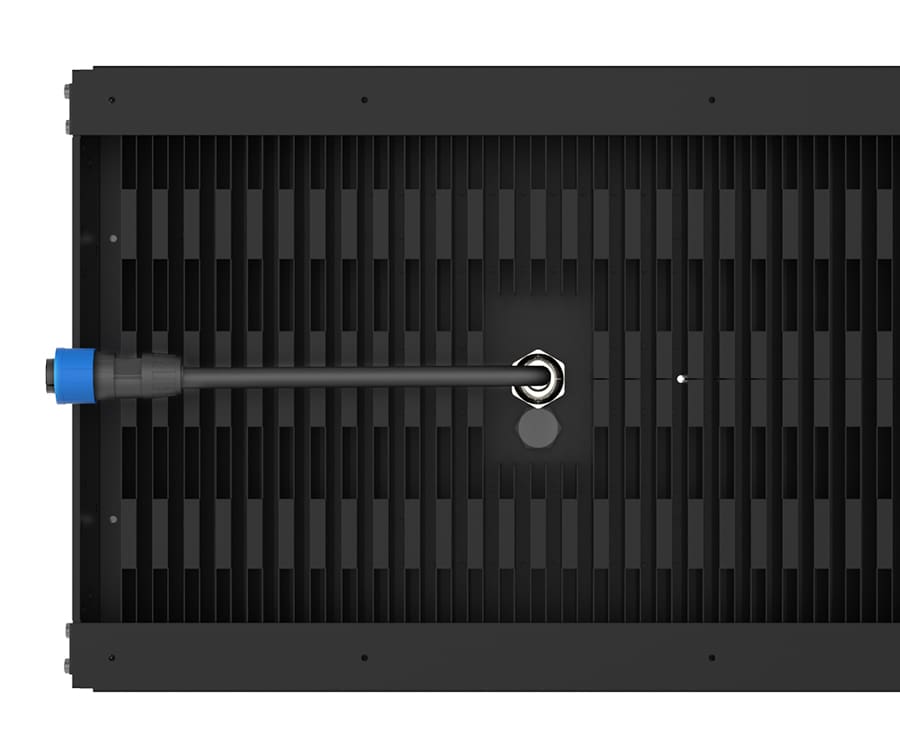

M15 Male Terminal
The power input end of the module is pressed with M15 male terminal, which can be quickly installed and replaced.
M15 Male Terminal
Other Module Light
There are five module lights, which can adapt to different lighting environments. There are PROE, PROA, PROB, Slim Plus, Dragonfly Max module lights.

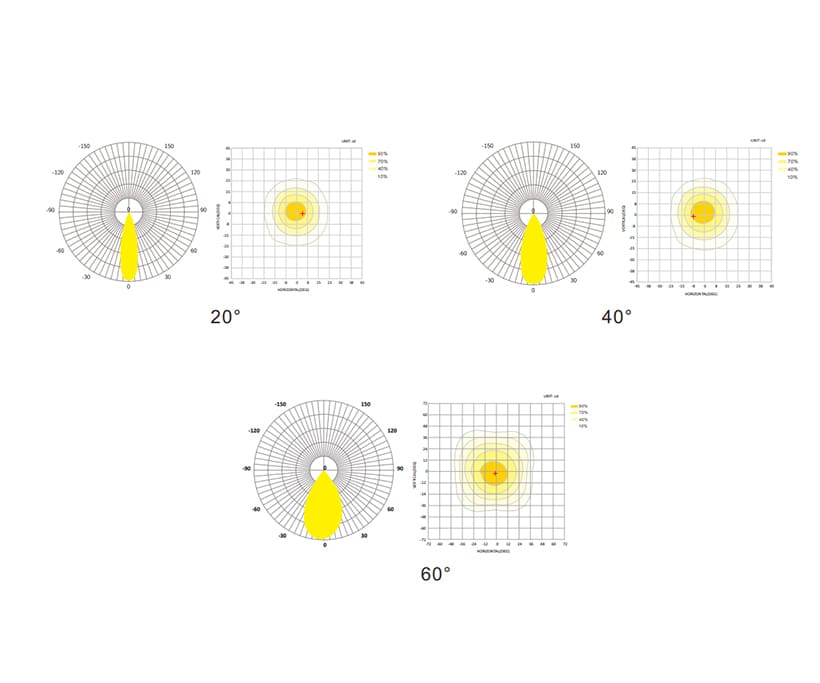

Beam Angle
The beam angle can be selected from 20/ 40/ 60 degree.
Professional light distribution angle can better achieve uniform and efficient lighting effect
20
40
60
Application
Great for DIY lighting designs.
Lighting for intersections, squares, docks, ships, ports, construction sites, cranes, tennis courts, basketball courts, football fields, etc.

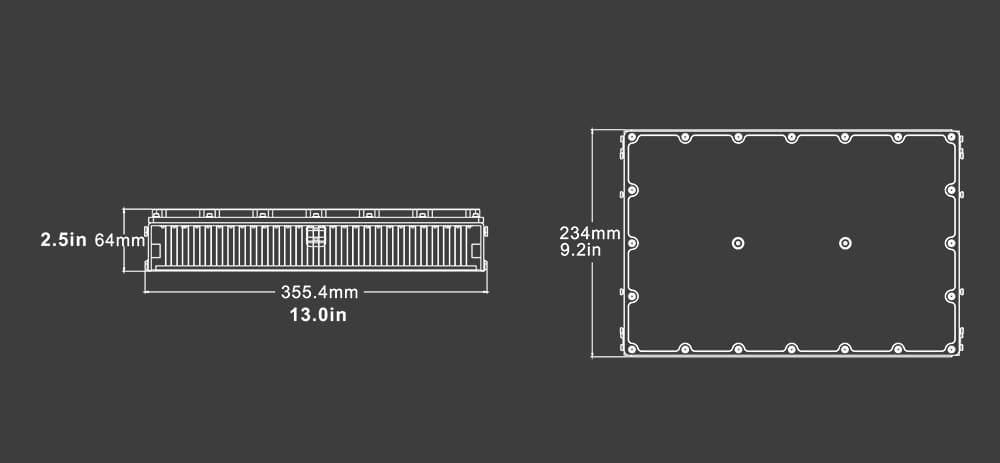

Size
| Watt | Size |
| 200W/ 240W/ 300W | 1pc/ 355.4*64*234mm |
