Slim ProX 240W IP66 LED Modular Flood Light - 100-277V 37200lm High uniformity LED Lighting

Slim ProX 240W IP66 LED Modular Flood Light - 100-277V 42,000lm High uniformity LED Lighting

● Watt: 240W

● Lumens: 37,200/ 42,000

● Light Source: Lumileds 5050

● Input Volt: 100-277VAC

● IP Rating: IP66 - IK10

● Size: 342*362*132mm

● Lamp Weight: 5.5kg

● CCT (Color Temp): 3000, 4000, 5000, 6000

● 5 years warranty

● Beam Angle: 10/20/40/60/90/140*100/135*60(P50)/70*30

Inquire Now Next Product Specification Sheet

Data Sheets
Beam Angle
Options/Accessories
Package details

Function icon

Specifications

Model	LSHM‐240W‐LV(XXK)ProX
Watt	240W
Lumens	37,200	42,000
Efficiency	160Lm/W±3%	175Lm/W±3%
Input Volt	100-277VAC
Chip Brand	Lumileds/ Osram 5050
CCT	3000K 4000K 5000K 5700K 6000K	4000K, 5000K
Modules	Rotatable
Weight	5.5kg
Size	342362132mm
Beam Angle	10/ 20/ 40/ 60/ 90/ 140100/ 13560(P50)/ 70*30 degree
Driver	Meanwell Driver XLG‐240‐H-A
Certification	ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved

Slim ProX high uniformity and flexibility led lighting fixture

1.Perfect lighting can increase the audience's enthusiasmfor the event;

2.Good lighting can improve the overall comfort and visibility of the sports venue;

3.Flicker-free high-quality lighting can also enhance the clarity and realism of TV broadcast and live broadcast;

Advantages of slim prox series products

Slim prox led modular flood light of different wattage

Designed for high uniformity sports light - More flexible and adjustable module design, it is the best for arena, sports field, large area lighting

Slim ProX 240W IP66 LED Modular Flood Light

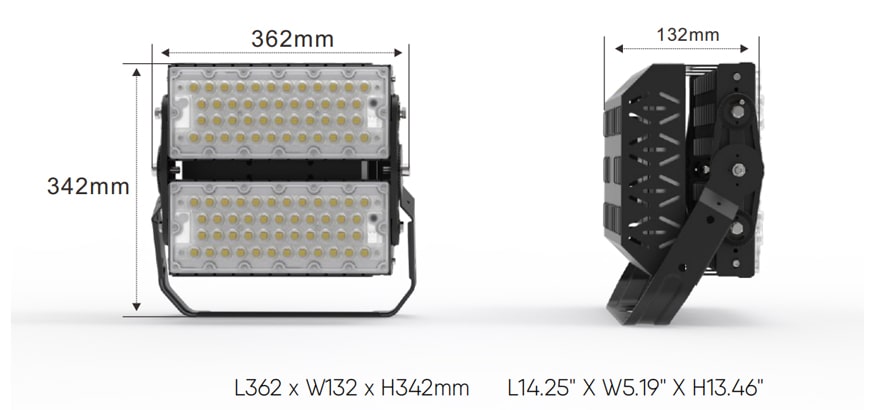

Slim ProX 240W IP66 LED Modular Flood Light size

Product Features

1.Pure aluminum heat sink

The entire lamp body adopts Pure aluminum heat sink, which has strong anti-corrosion performance and good heat dissipation performance. In addition, the weight is very light compared with other products of the same level. And adopted the Breathable Protective Air Vent Plug;

Slim ProX 240W IP66 LED Modular Flood Light uses aluminum heat sink

Photometrics

The optical lens is made of PC, and the light transmittance reaches 92%, reducing the loss of light, maximizing the lumen and uniformity of the lighting area and reducing the lighting pollution to nature and human life. Optional 10/20/40/60/90 degree / TypeIV / P50 beam angle.

beam angle
