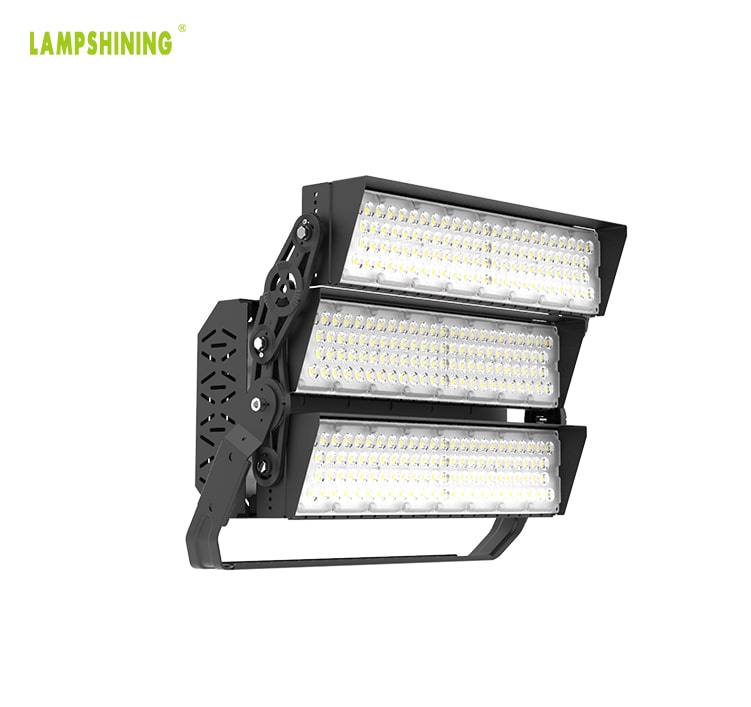

600W Slim ProX Rotatable Module Bracket LED Sports High Mast Light Fixture
  • 600W Slim ProX Rotatable Module Bracket LED Sports High Mast Light Fixture
  • 600W Slim ProX Rotatable Module Bracket LED Sports High Mast Light Fixture
  • 600W Slim ProX Rotatable Module Bracket LED Sports High Mast Light Fixture
  • 600W Slim ProX Rotatable Module Bracket LED Sports High Mast Light Fixture
  • 600W Slim ProX Rotatable Module Bracket LED Sports High Mast Light Fixture
  • 600W Slim ProX Rotatable Module Bracket LED Sports High Mast Light Fixture
600W Slim ProX Rotatable Module Bracket LED Sports High Mast Light Fixture600W Slim ProX Rotatable Module Bracket LED Sports High Mast Light Fixture600W Slim ProX Rotatable Module Bracket LED Sports High Mast Light Fixture600W Slim ProX Rotatable Module Bracket LED Sports High Mast Light Fixture600W Slim ProX Rotatable Module Bracket LED Sports High Mast Light Fixture600W Slim ProX Rotatable Module Bracket LED Sports High Mast Light Fixture

600W Slim ProX Rotatable Module Bracket LED Sports High Mast Light Fixture

●   Watt: 600W

●   Lumens: 96,000/ 105,000

●   Light Source: Lumileds 5050

●   Input Volt: 100-277VAC

●   IP Rating: IP66 - IK10

●   Size: 649*375*188mm

●   Lamp Weight: 12.5kg

●   CCT (Color Temp): 3000, 4000, 5000, 6000

●   5 years warranty

●   Beam Angle: 10/20/40/60/90/140*100/135*60(P50)/70*30

Inquire Now

600W Slim ProX Rotatable Module Bracket LED Sports High Mast Light Fixture

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Function icon

Specifications

Model

LSDHM-600W-LV(XXK)ProX

Watt600W
Lumen96,000105,000
Efficiency160Lm/W±3%175Lm/W±3%
Input Volt

100-277VAC

Chip BrandLumileds/ Osram 5050
CCT3000K 4000K 5000K 5700K 6000K4000K, 5000K
ModulesRotatable
Weight12.5kg
Size

649*375*188mm

Beam Angle10/ 20/ 40/ 60/ 90/ 140*100/ 135*60(P50)/ 70*30 degree
DriverMeanwell Driver 2*ELGC‐300‐H‐A
CertificationETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved


Slim ProX high uniformity and flexibility led lighting fixture

1.Perfect lighting can increase the audience's enthusiasmfor the event;

2.Good lighting can improve the overall comfort and visibility of the sports venue;

3.Flicker-free high-quality lighting can also enhance the clarity and realism of TV broadcast and live broadcast;

Advantages of slim prox series products

Slim prox led high mast light of different wattage


Designed for high uniformity sports light - More flexible and adjustable module design, it is the best for arena, sports field, large area lighting

600W Slim ProX LED Sports High Mast Light Fixture

600W Slim ProX LED Sports High Mast Light Fixture size

600W Slim ProX LED Sports High Mast Light Fixture show


Product Features

1.Modules can rotate continuously

The Slim prox series uses innovative continuously rotating accessories, which can be flexibly rotated to achieve the best lighting angle, which is very suitable for large-scale area lighting such as sports fields and airports;

slim prox led high mast light Modules can rotate continuously

600W Slim ProX Rotatable Module Bracket LED Sports High Mast Light Fixture


2.Pure aluminum heat sink

The entire lamp body adopts Pure aluminum heat sink, which has strong anti-corrosion performance and good heat dissipation performance. In addition, the weight is very light compared with other products of the same level. And adopted the Breathable Protective Air Vent Plug;

Introduction of slim prox led sports high mast light Pure aluminum heat sink


3.Professional optical system

Slim proX series each module can be matchec with any light distribution angle to achieve the most uniform lighting;

Introduction of slim prox led sports high mast light optical system


4.Anti-glare cover

The anti-glare cover accessory is specially used to reduce the excess upward light of the lamp. It can be used to correct the distribution of light and enhance the light in the area to be illuminated;

Introduction of slim prox led sports high mast light Anti-glare


5.High CRI

The Slim proX series LED high mast light can achieve high-quality lighting, CRI> 80. If there is a higher requirement for lighting, we can customize CRI> 90;

high cri vs low cri


6.Application

Slim ProX series LED high pole light products have a very wide range of applications. Suitable for outdoor lighting of all types of stadiums, squares, parks, parking lots, construction sites, etc.

led sports high mast light application


contact us

Beam angle

The optical lens is made of PC, and the light transmittance reaches 92%, reducing the loss of light, maximizing the lumen and uniformity of the lighting area and reducing the lighting pollution to nature and human life. Optional 10/20/40/60/90 degree / TypeIV / P50 beam angle.

beam angle

Accessories

347-480VAC Sosen driver

1-10V Dimmable
10KV or 20KV SPD
Slip fitterSlip fitter
Round Installation plateRound Installation plate
Anti glared visorAnti glared visor
Laser pointerLaser pointer


Packaging

66*60*30cm 1pc/ctn

GW: 16Kg
