● Watt: 1000W/1200W
● Light Source: Lumileds 5050
● Input Volt: 100-277VAC
● IP &IK Rating: IP66 & IK10
● Size: 556*691*435mm
● Lamp Weight: 26.0kg
● Fuction: Dali2.0 & DMX
● CCT (Color Temp): 3000~6000k
● Modules: Rotatable ±25°
● Beam Angle: (Symmetrical) 10° / 15°/ 20°/ 40° / 60°
● Beam Angle: (Asymmetrical) P50-L / P60-L
● 5 years warranty
Model | LSHM-1000W(XXK)Ultra | LSHM-1200W(XXK)Ultra |
| Watt | 1000W | 1200W |
| Chip Brand | Lumileds 5050 | |
| Lumen | 170,000Lm | 198,000Lm |
| Efficiency | 170lm/w±5% | 165lm/w±5% |
| Driver | Inventronics / Sosen driver | |
| Gross Weight | 18.5kg | |
| Input Volt | 100-277VAC, 50/60Hz | |
| Power Factor | >0.95 | |
| CRI | Ra>70 ,Optional with Ra>80 or Ra>90 | |
| Meterial | Folding aluminum fin design which are very light weight.5mm thickness turnnion bracket | |
| Finish | Powder Coating | |
| SPD | 10KV / 20KV Optional | |
| Fixtures Color | Black | |
| CCT | 3000K~6000K | |
| Lifespan | L90B10>100,000hrs | |
| IP Rating | IP66 | |
| IK Rating | IK10 | |
| Control | 0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee, Dali2.0 & DMX | |
| Beam Angle(Symmetrical) | 10° 15° 20° 40° 60° | |
| Beam Angle(Asymmetrical) | P50-L | |
| Certifications | ETL / ENEC / TUV / CE / CB / SAA / RoHS / LM79 / LM80 / IK10 Salt Spray test | |
| Warranty | 5 Years | |
Model | LSHM-1000W(XXK)Ultra | LSHM-1200W(XXK)Ultra |
| Watt | 1000W | 1200W |
| Chip Brand | Lumileds 5050 | |
| Lumen | 185,000Lm | 216,000Lm |
| Efficiency | 185lm/w±5% | 180lm/w±5% |
| Driver | Inventronics / Sosen driver | |
| Gross Weight | 18.5kg | |
| Input Volt | 100-277VAC, 50/60Hz | |
| Power Factor | >0.95 | |
| SPD | 10KV / 20KV Optional | |
| CRI | Ra>70 ,Optional with Ra>80 or Ra>90 | |
| Meterial | Folding aluminum fin design which are very light weight.5mm thickness turnnion bracket | |
| Finish | Powder Coating | |
| Bracket Materials | Aluminum die casting | |
| Lifespan | L90B10 >100,000hrs | |
| Fixtures Color | Black | |
| CCT | 3000K~6000K | |
| IP Rating | IP66 | |
| IK Rating | IK10 | |
| Control | 0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee,Dali2.0 & DMX | |
| Beam Angle(Symmetrical) | 10° 15° 20° 40° 60° | |
| Beam Angle(Asymmetrical) | P50-L / P60-L | |
| Certifications | ETL / ENEC / TUV / CE / CB / SAA / RoHS / LM79 / LM80 / IK10 Salt Spray test | |
| Warranty | 5 Years | |

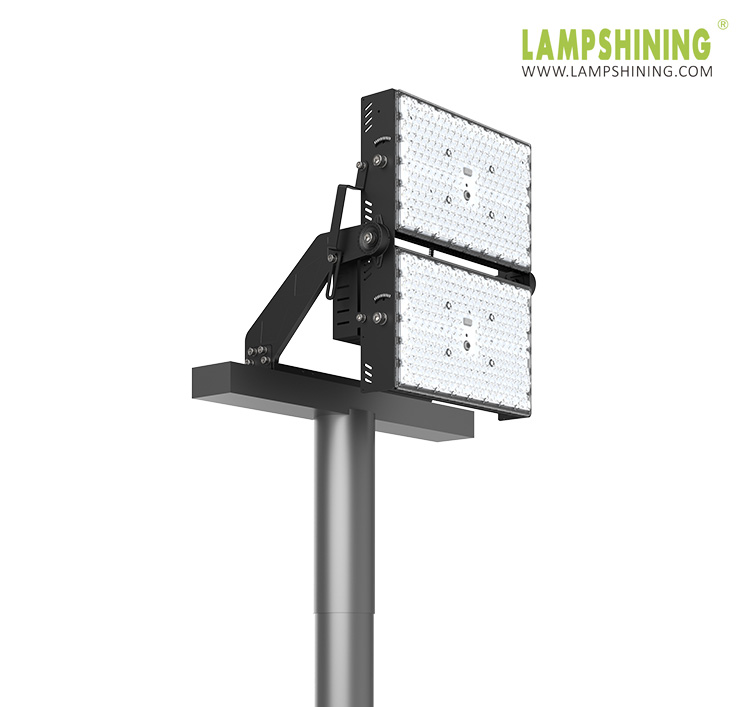

1000W 1200W Ultra LED High Mast Light
1000W 1200w led high mast lights LED Stadium Lights LED Sports Lights,Folding aluminum fin design which is very light weight which makes Ultra Lighter and smaller. Which both improves installation safety and reduces maintenance.
1000W
1200W
170lm/w±5%
185lm/w±5%
Lumileds 5050
ETL / ENEC / TUV / CE / CB / SAA / RoHS
LM79 / LM80 / IK10 Salt Spray test
Aluminum die casting bracket
Optional Aluminum die casting longer bracket for horizontal installation and seaside application.
Optional Intelligent Dimming Control System.
DALI2.0
DMX
Horizontal installation at 0 degree angle & Lamp tilted up 10 degree
Horizontal installation at 0 degree angle,No upper light output ratio (ULOR 0%) when mounted at 0° tilt.
Asymmetrical Lighting Asymmetrical lighting Distribtion Solutions are more dark-sky friendly and more e
At90° No direct uplighting
Lamp tilted up 10 degree
Remote Driver
Remote driver can be located 300m away from luminaire
Asymmetrical Optic Tilted installation
Symmetrical Optic Tilted installation
LampShining Asymmetrical LED High Mast Lights
Asymmetrical l P50-L & P60-L optic allows lamp to be installed horizontally No overflow upward lights which emits no light pollution neither to sky nor audiences or neighbors’space.
Asymmetrical P50-L & P60 optics produce a very low Glare Rating, GR<45,lights were forwarded further away which produces a higher uniformity up to 0.8
No overflow upward lights
No light pollution to sky
No light pollution to audiences or neighbors space
Low Glare Rating GR<45
Uniformity(U0) up to 0.8
Asymmetric Optical Lenses
Asymmetricl P50-L P60-L Optic Produce low Glare Rating GR<45 Lights were forwarded further away which produces a higher uniformity( U0) up to 0.8
Asymmetrical P50-L P60-L Optic allows lamp to be installed horizontally No overflow upward lights which emits no light pollution to sky,no light pollution to audiences or neighbors'space.
No overflow upward lights
No light pollution to sky
No light pollution to audiences or neighbors'space
Low Glare Rating GR<45
Uniformity(U0) up to 0.8
Symmetrical Optical Lenses
Broader illumination range, wide range of applications.
Module Rotatable ±25°
Bracket Rotatable 0° to 270°
Application
For area lighting for interior and exterior applications:
Airport, golf course, factories, plants, warehouse, exhibition halls, gym, seaport, highway, high mast lighting and
bmx sportlighting etc.
LED Baseball Field Lights,Field Hockey Lighting,Football Field Lights,Golf Course Lighting & Driving Range Lights
LED Polo Field Lighting,Race Track Lights,LED Track and Field Lighting,LED Shooting Range Lights
Ski Mountain Lights,Soccer Field Lights,Softball Field Lights,LED Sports Field Lighting
LED Sports Light Retrofits,Tennis Court Lights,LED Wiffle Ball Field Lights,Outdoor Perimeter Lighting
LED Bridge Lighting,Crane Lights,LED Shipyard Lighting,LED Construction Lights,Commercial LED Security Lighting
