● Watt: 500W/600W
● Light Source: Lumileds 5050
● Input Volt: 100-277VAC
● IP &IK Rating: IP66 & IK10
● Lamp Weight: 11.8kg
● Fuction: Dali2.0 & DMX
● CCT (Color Temp): 3000~6000k
● Modules: Rotatable ±25°
● Beam Angle: (Symmetrical) 10° / 15°/ 20°/ 40° / 60°
● Beam Angle: (Asymmetrical) P50-L / P60-L
● 5 years warranty
Model | LSHM-500W(XXK)Ultra | LSHM-600W(XXK)Ultra |
| Watt | 500W | 600W |
| Chip Brand | Lumileds 5050 | |
| Lumen | 85,000Lm | 99,000Lm |
| Efficiency | 170lm/w±5% | 165lm/w±5% |
| Driver | Inventronics / Sosen driver | |

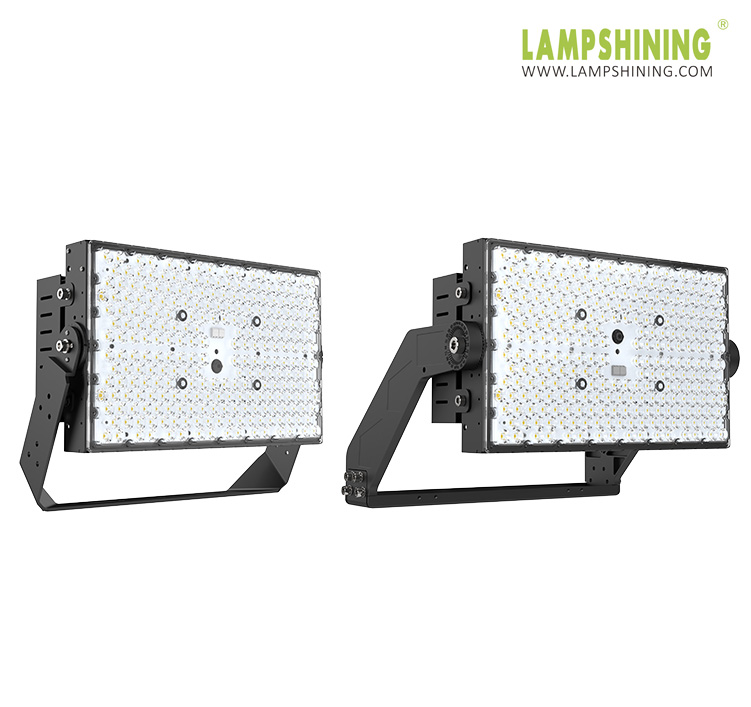

| Gross Weight | 11.8kg (Iron Bracket ) / 12.3kg(Aluminum die casting Bracket) | |
| Input Volt | 100-277VAC, 50/60Hz | |
| Power Factor | >0.95 | |
| CRI | Ra>70 ,Optional with Ra>80 or Ra>90 | |
| Meterial | Folding aluminum fin design which are very light weight.5mm thickness turnnion bracket | |
| Finish | Powder Coating | |
| Lifespan | L90B10>100,000hrs | |
| Fixtures Color | Black | |
| CCT | 3000K~6000K | |
| IP Rating | IP66 | |
| IK Rating | IK10 | |
| Control | 0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee,Dali2.0 & DMX | |
| Beam Angle(Symmetrical) | 10° 20° 40° 60° 90° | |
| Beam Angle(Asymmetrical) | P50-L | |
| Certifications | ENEC / TUV / CE/ CB/SAA/RoHS/LM79/LM80/IK10 Salt Spray test | |
| Warranty | 5 Years | |
Model | LSHM-500W(XXK)Ultra | LSHM-600W(XXK)Ultra |
| Watt | 500W | 600W |
| Chip Brand | Lumileds 5050 | |
| Lumen | 92,500Lm | 108,000Lm |
| Efficiency | 185lm/w±5% | 180lm/w±5% |
| Driver | Inventronics / Sosen driver | |
| Gross Weight | 11.8kg (Iron Bracket ) / 12.3kg(Aluminum die casting Bracket) | |
| Input Volt | 100-277VAC, 50/60Hz | |
| Power Factor | >0.95 | |
| CRI | Ra>70 ,Optional with Ra>80 or Ra>90 | |
| Meterial | Folding aluminum fin design which are very light weight.5mm thickness turnnion bracket | |
| Finish | Powder Coating | |
| Lifespan | L90B10>100,000hrs | |
| Fixtures Color | Black | |
| CCT | 3000K~6000K | |
| IP Rating | IP66 | |
| IK Rating | IK10 | |
| Control | 0-10V, 1-10V dim control, Motion sensor, DALI, Zigbee,Dali2.0 & DMX | |
| Beam Angle(Symmetrical) | 10° 15° 20° 40° 60° 90° | |
| Beam Angle(Asymmetrical) | P50-L / P60-L | |
| Certifications | ENEC / TUV / CE/ CB/SAA/RoHS/LM79/LM80/IK10 Salt Spray test | |
| Warranty | 5 Years | |

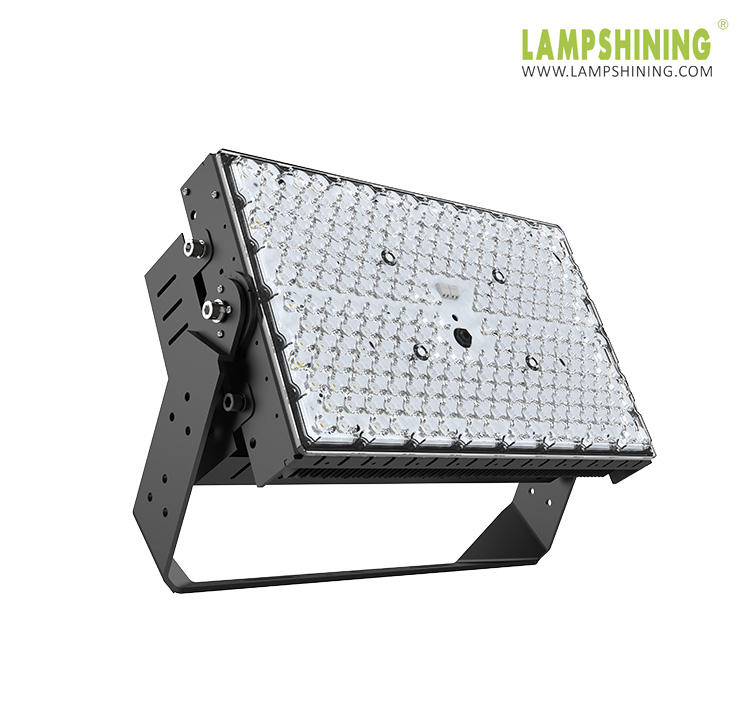

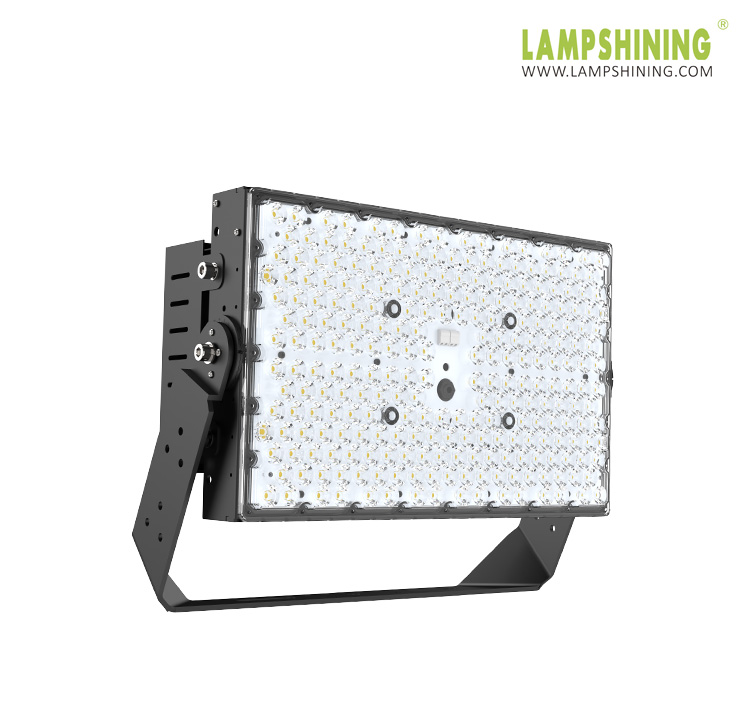

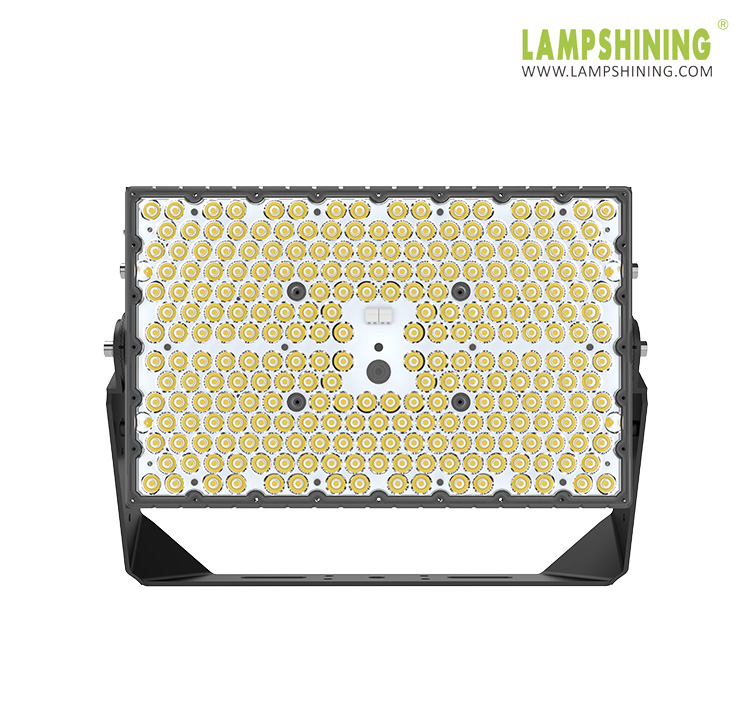

500W 600W Ultra LED High Mast Lights
For area lighting for applications: Airports, Golf course | Sport Fields | Stadiums| Shopping Centers | Prisons | Expressways | Industrial Facilities and Railway Terminals etc.
LSHM-500W(XXK)Ultra
LSHM-600W(XXK)Ultra
ETL / ENEC / TUV / CE / CB / SAA / RoHS
LM79 / LM80 / IK10 Salt Spray test

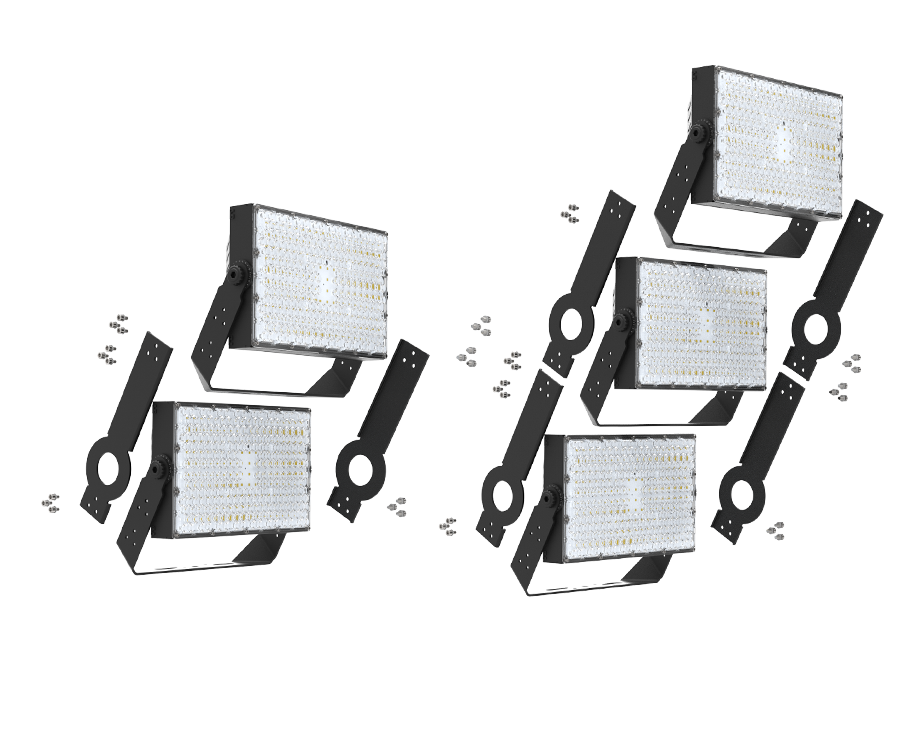

EASY Combination
Ultra LED high mast lights 500W 600W two power, through the link piece can be quickly assembled into two modules
1000W 1200W, three modules 1440W 1800W, which means that only need to stock Ultra LED high mast lights plus the link
piece can meet the needs of six kinds of power, the demand for application scenarios can be quickly responded to.
2pcs built into one piece 1000W & 1200W
3pcs built into one piece 1440W & 1800W

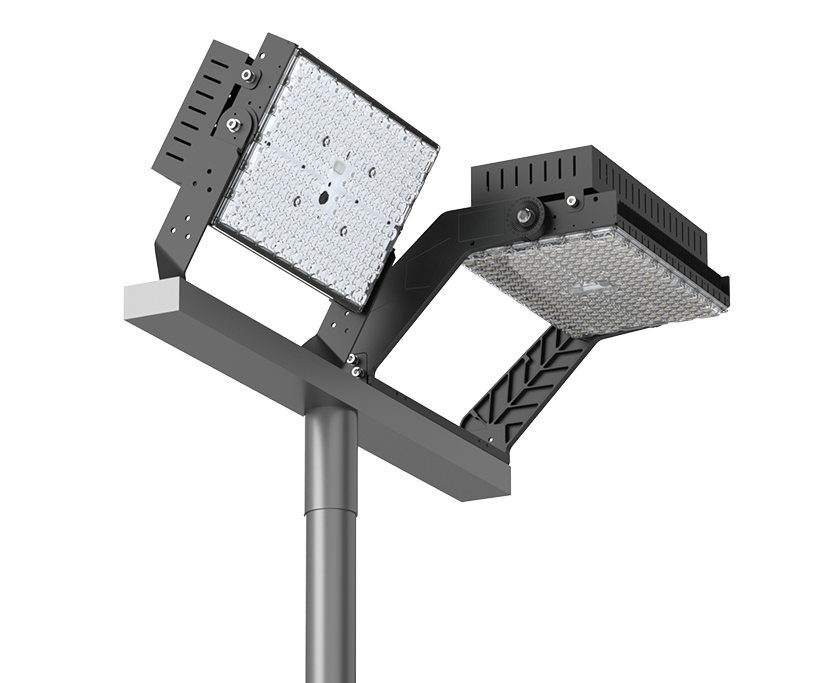

Module Rotatable
Both single module and full lamp are rotatable
rotatable 270°

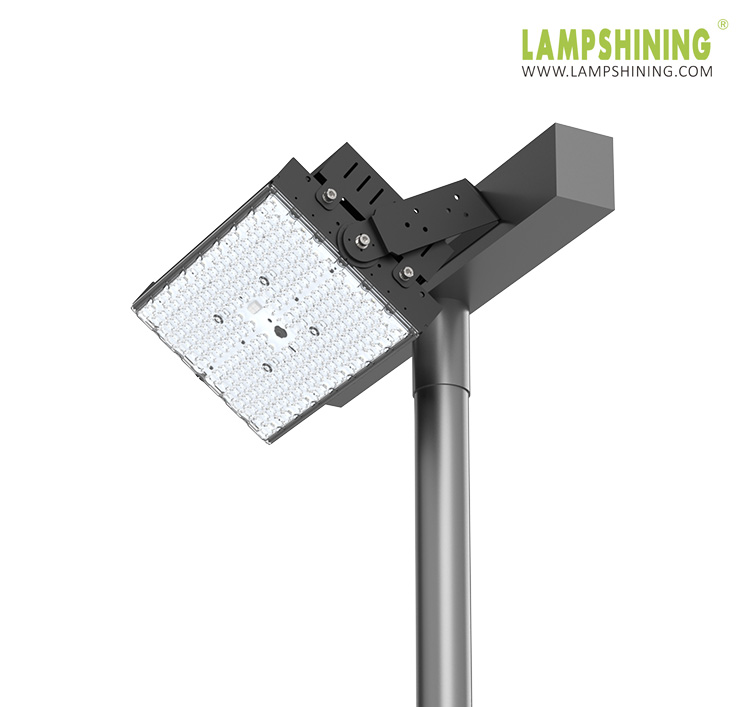

Horizontal installation at 0 degree angle & Lamp tilted up 10 degree
Horizontal installation at 0 degree angle,No upper light output ratio (ULOR 0%) when mounted at 0° tilt.
Asymmetrical Lighting Asymmetrical lighting Distribtion Solutions are more dark-sky friendly and more e
At90° No direct uplighting
Lamp tilted up 10 degree
Remote Driver
Remote driver can be located 300m away from luminaire
Beam Angle
Broader illumination range, wide range of applications.
Symmetrical 10° / 20°/ 40°/ 60°
Asymmetrical P50-L / P60-L
Application
For area lighting for interior and exterior applications:
Airport, golf course, factories, plants, warehouse, exhibition halls, gym, seaport, highway, high mast lighting and
bmx sportlighting etc.
LED Baseball Field Lights,Field Hockey Lighting,Football Field Lights,Golf Course Lighting & Driving Range Lights
LED Polo Field Lighting,Race Track Lights,LED Track and Field Lighting,LED Shooting Range Lights
Ski Mountain Lights,Soccer Field Lights,Softball Field Lights,LED Sports Field Lighting
LED Sports Light Retrofits,Tennis Court Lights,LED Wiffle Ball Field Lights,Outdoor Perimeter Lighting
LED Bridge Lighting,Crane Lights,LED Shipyard Lighting,LED Construction Lights,Commercial LED Security Lighting
